ZIPWAKE S SERIES, 300MM KIT INCL DISPLAY

SKU:
2011145
Price:
$4,512.89 inc. GST

Description

Zipwake, the worlds first inexpensive dynamic trim control system, incorporates a state of the art series of durable, fast acting interceptors, eliminating the well-known trim problems of planing and semi-planing boats. The system is fully automatic and significantly enhances performance fuel economy, comfort and safety when accelerating, turning or running in a seaway. Zip-wake delivers a more comfortable ride, better performance and improved fuel consumption- whatever the conditions.

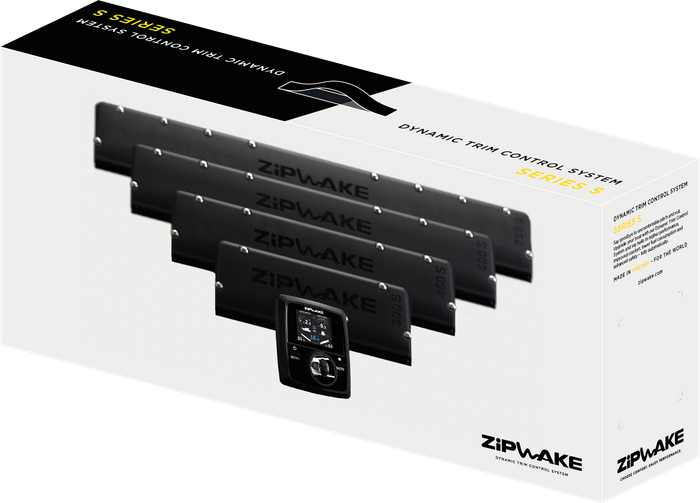

Pack Includes:

Control Panel with Standard 7m Cable
Distribution Unit with 4m Power Cable
Two 300mm Interceptors with 3m cable & covers

Key Features:

5 times faster actuation.
Dynamically eliminates uncomfortable and dangerous boat pitch and roll.
Automatically minimizes wave resistance and saves fuel.
Built-in quality, simplicity and easy expansion, yet affordable.
Intuative and precise control.
Comfort and safety.
Performance and fuel economy.

  • Fully automatic

- Dynamic pitch and roll control

- Steering and turn enhancement

  • Built-in GPS and motion sensors
  • Unique and intuitive 3D controls
  • Sunlight readable color display
  • Instant state user feedback
  • Auto power on/off via ignition key sense
  • Full range of electrical interfaces
  • Waterproof
  • Auto dimming / night mode
  • Upgradable via USB stick
  • Up to four control panels in the system
  • Surface, flush or gimbal bracket mount
  • Manages installation configurations from 1 up to 6 interceptors
  • Auto Cleaning - Selectable periodic cleaning cycle - Prevents fouling inside the interceptor
  • Monitored and/or controlled from external devices, e.g. multifunction displays or plotters via its NMEA 2000 interface

SPECIFICATIONS

Model IT300-S
Length 300 mm
Weight

2.1 kg
Max. Boat Speed 60 knots
Blade Stroke
 30 mm (1.2 in)
Blade Rate 20 mm/s (0.8 in/s)
Thru-Hull Cable Fitting Concealed or above waterline
Servo actuator SU-S
Cable Length
 3 m (10 ft), extendable up to 6 m (20 ft)
Cable Material PUR
Connector M12 5-pin circular
Connector Diameter 14.5 mm (0.57 in)
Supply Voltage
 12 - 32 V DC
Power Consumption 25 W max
Operating Temperature 0° to +40°C (+32° to +104°F)
Storage Temperature
 -40° to +90°C (-40° to +194°F)
Waterproof Rating IP68 5 m (16 ft)
Compliance CE, FCC
Connector Diameter 14.5 mm (0.57 in)
