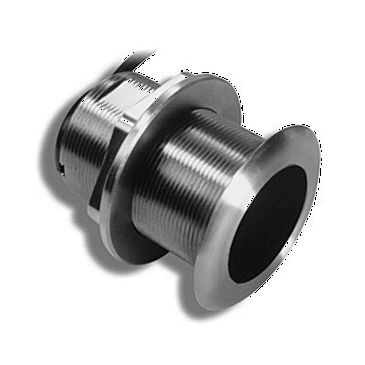

XSONIC AIRMAR SS60 12 DEG

SKU:
000-13785-001
Price:
$639.00 inc. GST

Description

The SS60 is a Stainless Steel, thru-hull, tilted, dual-frequency, depth and temperature transducer. The ceramic element is tilted for built-in deadrise compensation, giving excellent echo returns for more accurate depth readings.

Features:

Depth and water temperature.
600 W.
50 kHz with a wide 45° beamwidth for depth performance to 353 m (1,200').
200 kHz with a 12° beamwidth for depth performance to 206 m (700').
Perfect for center-console or trailered boats.
Low-profile protrusion extends only 5 mm (3/16") outside the hull.
No effect on your boat’s running performance.
Stainless steel housing for use on all hull materials.

Specifications:

Weight: 1.4 kg (3 lb.)
Recommended Boat Length: Up to 8 m (25')
Hull Material: Compatible with all hull materials
Hull Deadrise: 8°-15°
Acoustic Window: Urethane
Hole Diameter: 60 mm (2-3/8") (fiberglass or wood hull), 70 mm or 2-3" (metal hull)

SS60 Depth/Temperature Transducer 12° Tilt

The SS60 is a Stainless Steel, thru-hull, tilted, dual-frequency, depth and temperature transducer. The ceramic element is tilted for built-in deadrise compensation, giving excellent echo returns for more accurate depth readings.

Features

  • Depth and water temperature
  • 600 W
  • 50 kHz with a wide 45° beamwidth for depth performance to 353 m (1,200')
  • 200 kHz with a 12° beamwidth for depth performance to 206 m (700')
  • Perfect for center-console or trailered boats
  • Low-profile protrusion extends only 5 mm (3/16") outside the hull
  • No effect on your boat’s running performance
  • Stainless steel housing for use on all hull materials

Specifications

  • Weight: 1.4 kg (3 lb.)
  • Recommended Boat Length: Up to 8 m (25')
  • Hull Material: Compatible with all hull materials
  • Hull Deadrise: 8°-15°
  • Acoustic Window: Urethane
  • Hole Diameter: 60 mm (2-3/8") (fiberglass or wood hull), 70 mm or 2-3" (metal hull)

Transducer Specifications

Frequency 50/200 kHz
Power Rating 600W
Speed Sensor No
Temperature Sensor Yes
Mounting Style Stainless Thru-Hull
Elements 1
Beamwidth @ -3dB 45 (50 kHz) 12 (200 kHz)
