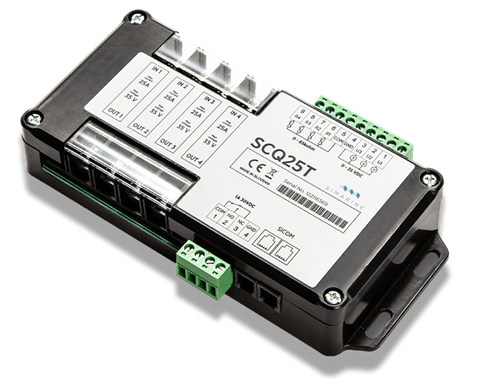

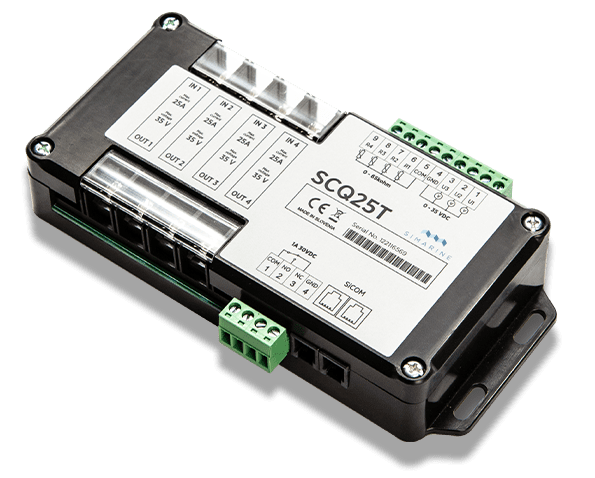

SCQ25T QUADRO SHUNT & TANK MODULE

SKU:
S004
Price:
$499.62 inc. GST

Description

Looking for a highly versatile digital shunt module for monitoring smaller consumers like refrigerator and/or generators like solar, wind, hydro or shore power?

SCQ25T its an innovative combination of shunt, tank interface and voltage module with wide range of monitoring possiblities.

SCQ25T is a highly verstaile and innovative combination of shunt, tank interface and voltage module.  Its higly innovative shunt module with four inputs for monitoring individual consumer and generator continuous currents up to 25A (35A peak) per input on 12V and 24V systems. Additionally, equipped with four resistance inputs for resistance-type tank level or temperature sensors and three voltage inputs for voltage-type tanks sensors and battery voltages allows wide connection possibilities.

That is very convenient for monitoring smaller consumers like refrigerator or generators like solar, wind, hydro or shore power. The current channels can be combined for higher amperage, meaning the continuous currents on the combined channels up to 50A (70A peak) on 12V and 24V volts.

SCQ25T’s innovative protected architecture allows wiring in either negative (low) or positive (high) side.
