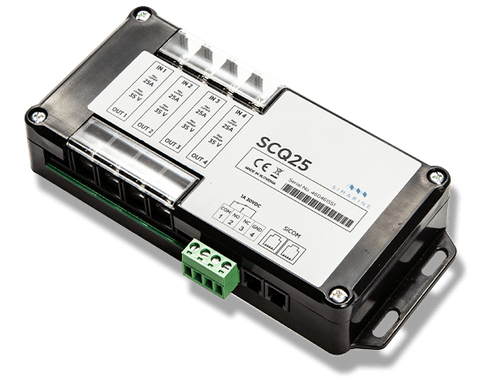

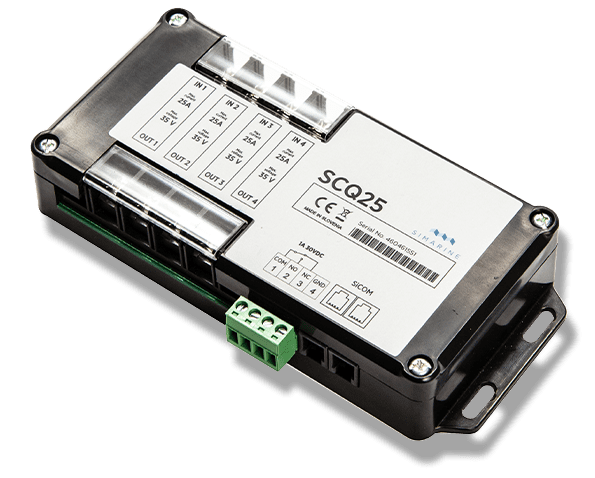

SCQ25 QUADRO SHUNT MODULE

SKU:
S003
Price:
$332.15 inc. GST

Description

SCQ25 is an innovative shunt module for monitoring individual consumers and generator with 4x current sensors up to 25A each. For 12V and 24V systems.

SCQ25 is an innovative shunt module with four inputs for monitoring individual consumer and generator continuous currents up to 25A (35A peak) per input on 12V and 24V systems.

That is very convenient for monitoring smaller consumers like refrigerator or generators like solar, wind, hydro or shore power. The current channels can be combined for higher amperage, meaning the continuous currents on the combined channels up to 50A (70A peak) on 12V and 24V volts.

SCQ25’s innovative protected architecture allows wiring in either negative (low) or positive (high) side. Up to five modules can be connected simultaneously to monitor up to 20 current channels (only on PICO Battery Monitor).

Weight 0.3 kg
Dimensions 10 × 5 × 3 cm
