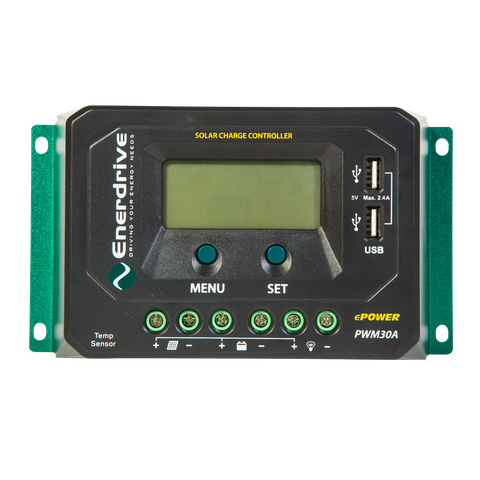

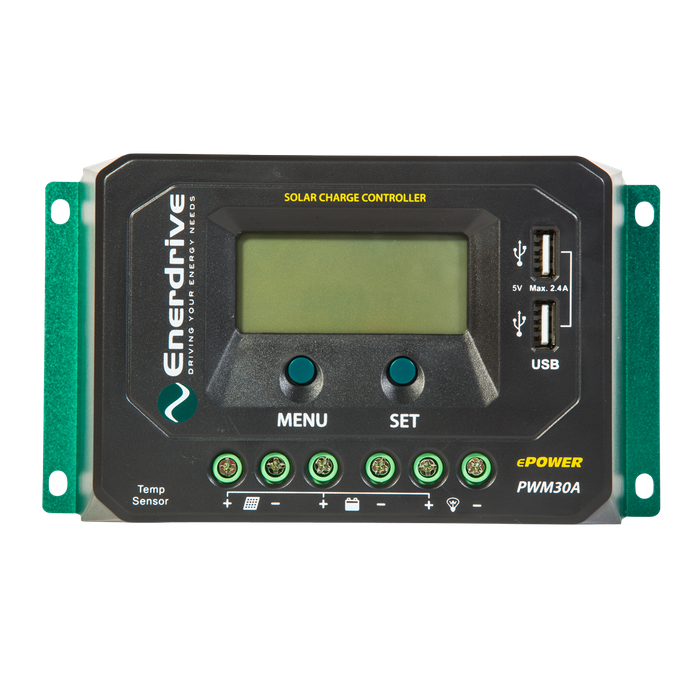

EPOWER PWM SOLAR CONTROLLER 30A

SKU:
EN43030
Price:
$173.26 inc. GST

Description

Enerdrive PWM 30A Solar Charge Controller benefits include:

Protects battery from overcharge and discharge.
12/24V auto detect.
Handles up to 30 Amps of Array Current.
Handles up to 450 Watts of solar power.
Maintenance free protection of your solar panel and batteries.
Maintains battery voltage.
Maintain 12/24V batteries in a fully charged state.

Features

Enerdrive PWM 30A Solar Charge Controller benefits include:

  • Protects battery from overcharge and discharge
  • 12/24V auto detect
  • Handles up to 30 Amps of Array Current
  • Handles up to 450 Watts of solar power
  • Maintenance free protection of your solar panel and batteries
  • Maintains battery voltage
  • Maintain 12/24V batteries in a fully charged state



Product Features:

  • Informative backlight LCD display indicates solar charge input, charge/load output Volatage/Amps
  • Selectable battery type Sealed, Flooded & Gel
  • 2 x USB Outputs 2.4A
  • Full output operation up to 55oC
  • Temperature compensation
  • High precision on voltage set point
  • Wall mountable

Specifications

Enerdrive Part Number EN43030
Battery Voltage Input 12/24 Vdc
Max. PV panel open circuit voltage 12V-20VOC - 24V-50VOC
Maximum charge current 30A
Maximum load current 30A
Operational Current (no load & no PV) 12V -18mA
24V -14.5mA
Battery Type Sealed (Default) / Gel/ Flooded
Bulk/Absorption Charging Voltage Sealed: 14.4V/ Gel:14.2V/ Flooded 14.6V
Equalize Charging Voltage Sealed: 14.4V/ Gel:14.2V/ Flooded 14.8V
Float Charging Voltage Sealed/ Gel/ Flooded: 13.8V
Low Voltage Disconnect Sealed/ Gel/ Flooded:11.1V
Low Voltage Reconnect Sealed/ Gel/ Flooded:12.6V
Temp Compensation Coefficient -18mV/°C >25°C@12V / -36mV/°C >25°C@24V
Charge circuit voltage drop 0.29V
Discharge circuit voltage drop 0.16V
Battery Chargers Stages 2 Step: Bulk and Float
LCD temperature range -20 ÌŠC+70 ÌŠC
Operating temperature -25 ÌŠC+55 ÌŠC
Relative humidity 95% N.C.
Enclosure IP30
Grounding Common Positive
USB output 5VDC/2.4A (Total)
Dimensions (L x W x H) 181 x 101 x 60mm
Weight 0.55 Kg
Terminals 16mm2 - 6AWG
Warranty 3 Years
Note: Specifications subject to change without notice.
