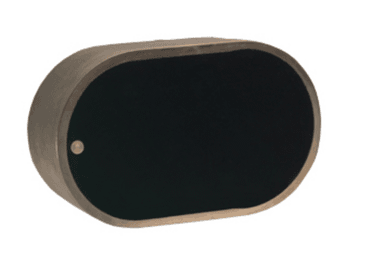

XSONIC AIRMAR PM275LH-W

SKU:
000-13940-001
Price:
$2,369.00 inc. GST

Description

XSONIC AIRMAR PM275LH-W: Dual Black 9 pin connectors: Cable length 10 m (33.0 ft)

The PM275LH-W is a pocket or keel-mounted CHIRP transducer, ideal for sportfishing and commercial vessels 8 m (25 ft) and up. This dual-channel transducer combines Low CHIRP frequencies to accurately track the bottom in deep water, with High CHIRP at a constant 25° beam width for the best resolution and coverage in the upper water column and in shallower depths.

The PM275LH-W is a pocket or keel-mounted CHIRP transducer, ideal for sportfishing and commercial vessels 8 m (25 ft) and up. This dual-channel transducer combines Low CHIRP frequencies to accurately track the bottom in deep water, with High CHIRP at a constant 25° beam width for the best resolution and coverage in the upper water column and in shallower depths.

The high wide is the ideal choice for both inshore and pelagic fishing, where resolution and maximum coverage under the boat are essential down to 152 m (500').

The low-frequency band and 1 kW of power also support great deep-water performance. Get the best of both worlds with Airmar’s dual-frequency, Chirp-ready transducer with wide-beam coverage.

Features

  • Depth and fast-response water-temperature sensor
  • 1 kW for great deep-water performance from the low frequency
  • Low frequency: 42 to 65 kHz
  • 25° to 16° beamwidth
  • Maximum depth of 914 m (3,000')
  • High frequency: 150 to 250 kHz
  • 25° constant beamwidth
  • Maximum depth of 152 m (500')
  • 123 kHz of total bandwidth from one transducer
  • Covers popular fishing frequencies of 50 and 200 kHz plus everything else in the bandwidth
  • High frequency delivers superior shallow-water performance, bottom detail, and fish-target separation
  • High wide beamwidth yields more coverage for detecting fish in the upper-water column
  • Urethane housing designed for custom pocket/keel mounting
  • Also available as thru-hull (B275LHW) and transom (TM275LHW) mounts

Specifications

Weight 5.3 kg (11.6 lb.)
Recommended Boat Length 8 m (25') and above
Hull Material Solid fiberglass only
Hull Deadrise Accommodates any deadrise angle based on the custom cavity construction
Acoustic Window Urethane
Transducer Element Eight internal broadband ceramic assemblies
