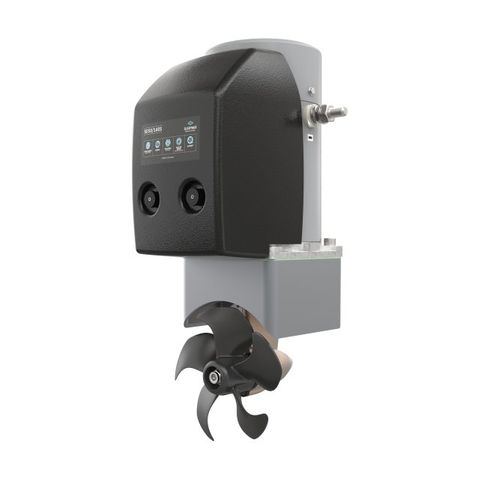

SE50 TUNNEL THRUSTER (12V, 50KG)

SKU:
SE50/140S-12V
Price:
$2,586.95 inc. GST

Description

SE50 Tunnel thruster, 12V 50kg thrust On/Off

Yet another tunnel diameter in our world leading range of DC thrusters are now available. The new SE50/140S delivers an actual thrust of 50 kg at 10.5 V in a 140 mm tunnel diameter.

Please note that the SE50 wil not be available for stern installation. Please consider SE40, SE60 or EX Compact as good alternatives.

Features are similar to the SE60, except that SE50 incorporates a flexible couplling and are therefore also galvanic insulated.

Properties



FLEXIBLE INSTALLATION

Sleipner offers installation flexibility to work with the space you have. Our thruster models allow installation at any angle on the tunnel, tailored to fit any space available in your vessel.



DC

Powered by direct current.



ANALOG

Sleipner analog signal cables with Plug & Play connectors are color-coded to match the wiring diagrams with high-quality connectors to ensure a correct installation.



OVERHEAT PROTECTION

Automatic detection of overheating of internal components. When an unsafe temperature is detected, the unit is automatically shut off to prevent overheating.



GALVANIC SEPARATION

Immersed parts exposed to seawater are galvanic isolated from the onboard electrical system, eliminating stray currents.



SEALED DRIVE LUBRICATION

The thruster gearleg is pre-filled for lifetime lubrication and sealed using a long-time mechanical seal with ceramic and carbon surfaces for ultimate security against water intrusion.



SINGLE PROPELLER

A properly engineered single propeller system will be the most energy efficient thruster. Its compact design fits easily into narrow bows making it the perfect match for our smaller thruster range. With more than 60.000 single propeller thrusters in use, the single propeller has proven its reliability.



Q-PROP™

The Q-PROP™ has measured noise reductions of up to 75% in controlled environments. The five-bladed skew propeller reduces noise levels while maintaining exceptional efficiency. Some thruster models even see an increase in thrust power.

  • The expected noise reduction in average installations: 20-40%
  • Upgrade kits are available for most Sleipner thruster models with special adaptors



INTELLIGENT POWER CONTROL

Sleipner's patented intelligent power control provides a minimal delay between drive directions to reduce wear of the mechanical parts while monitoring solenoid functions. In the case of a solenoid lock-in, the thruster will automatically stop without extra user action or controlling the main switch.



Power Value
Operating Power Electric
Power Requirement 12V DC
Power Output 2.4kW / 3.2hp
Thrust at 12V 62kg / 136lbs
Thrust at 10.5V 50kg / 110lbs
Operational Running Limit (min) 2-3 duty cycle at 20°C
Nominal Current Draw 370A
Min. Battery CCA (DIN) 350
Min. Battery CCA (SAE) 665
Min. Battery CCA (EN) 600
Recommended fuse ANL 325
Operational Intention Value
Ideal Vessel Class Motor boat, Sail boat
Ideal Vessel Size 8-11m / 27-37ft
Bow Capability Yes
Stern Capability No
Retractable Capability No
External Mounting Capability No
Tunnel Capability Yes
Weight Value
Weight 15kg / 33lbs



Measurements Value
(H) Height 264mm / 10.39in
(L) Length 208mm / 8.19in
(W) Width 200mm / 7.87in
(ID) Internal Diameter 140mm / 5.51in
(WD) Water Depth 140mm / 5.51in
(TL) Recommended Tunnel Length 152mm / 5.98in
(TL min.) Minimum Tunnel Length 124mm / 4.88in
(T min.) Minimum Tunnel Wall Thickness 5mm / 0.2in
(T max.) Maximum Tunnel Wall Thickness 7mm / 0.28in
