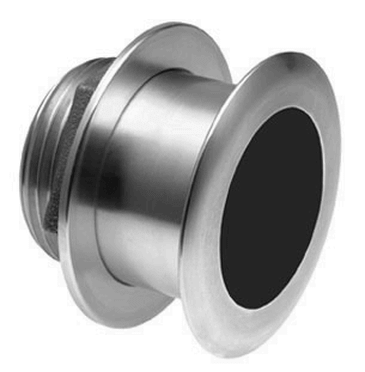

XSONIC SS164 1KW 50/200 20DEGT/H TD

SKU:
000-13918-001
Price:
$1,649.00 inc. GST

Description

XSONIC SS164 Stainless Steel low profile thru-hull 1 kW 50/200 kHz with 22/20° 6/6° array beamwidths and 20° tilt Depth/Temp -12m: Black 9 pin connector: Cable length 10 m (33.0 ft)

The 1kW, flush-mount, Tilted Element transducer is perfect for fast, trailered, tournament sportfishing vessels that cannot have a High-Performance Fairing. The flush-mounted, bronze housing protrudes less than 6.35 mm (0.25”) outside your hull and can sit on trailer rollers and bunks with no damage at all. The ceramic arrays are tilted to 20 degrees inside the housing giving you the perfect vertical beam with maximum energy on what is directly below your boat.

SS164 Depth/Temperature Transducer (20°)

This 1 kW, flush-mount transducer is perfect for fast, trailered, tournament and sport-fishing vessels that cannot accommodate a high-performance fairing. The flush-mounted, stainless steel housing protrudes less than 6.35 mm (1/4") outside your hull, so it can sit on trailer rollers and bunks. The ceramic arrays are tilted inside the housing, providing the perfect vertical beam with maximum energy on what is directly below the boat.

Features

  • Depth and fast-response water-temperature sensor
  • 1 kW power for depth performance to 500 m (1,640'):
  • 50 kHz with a wide 22° beam (Max 500m)
  • 200 kHz with a 6° beam (Max 244m)
  • Interfaces to any 600 W or 1 kW echosounder
  • Engineered for center-console and trailered boats
  • Low-profile design protrudes less than 6.35 mm (1/4") outside your hull
  • No effect on boat’s running performance
  • Stainless steel housing for use on all hull materials

Specifications

  • Weight: 2.7 kg (6 lb.)
  • Recommended Boat Length: Up to 11 m (35')
  • Hull Material: Compatible with all hull materials
  • 20° tilted version for 16° to 24° hull deadrise
  • 12° tilted version for 8° to 15° hull deadrise
  • 0° tilted version for 0° to 7° hull deadrise
  • Acoustic Window: Urethane
  • Hole Diameter: 95 mm or 3-3/4" (fiberglass or wood hull), 105 mm or 4-1/8" (metal hull)

Transducer Specifications

Frequency 50/200 kHz
Power Rating 1kW
Speed Sensor No
Temperature Sensor Yes
Mounting Style Stainless Steel Thru-Hull
Elements 3
Beamwidth @ -3dB 22x20 (50 kHz) 6x6 (200 kHz)
