SERVO UNIT S PRO WITH CABLE 3 M

SKU:
2021230
Price:
$1,307.41 inc. GST

Description

Fast-acting and durable Servo units for PRO INTERCEPTORS

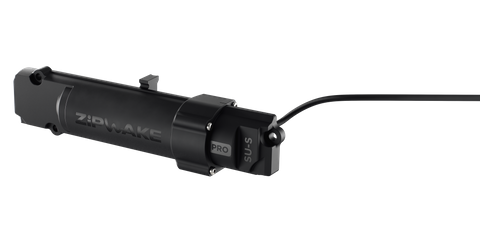

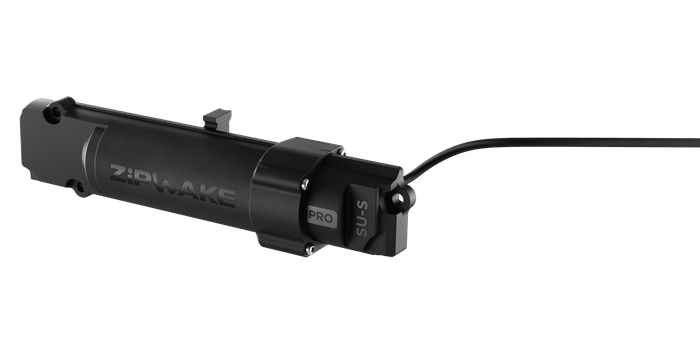

The PRO submersible electrical servo unit fits inside the interceptor, where it drives with precision the mechanism that provides linear motion to the interceptor blades. For extended service life, the servo unit has double shaft seals and a precision-ground shaft in special high-grade stainless steel. The unit is fast-acting, durable, calibration free and easy to install or replace. It comes with a rugged 3 m cable with a self-sealing thru-hull fitting.

Fast-acting and durable Servo units for PRO INTERCEPTORS

The PRO submersible electrical servo unit fits inside the interceptor, where it drives with precision the mechanism that provides linear motion to the interceptor blades. For extended service life, the servo unit has double shaft seals and a precision-ground shaft in special high-grade stainless steel. The unit is fast-acting, durable, calibration free and easy to install or replace. It comes with a rugged 3 m cable with a self-sealing thru-hull fitting.


Servo motor type Brushless DC with Hall sensors
Operating voltage 36 V DC
Power consumption 35 W max
Operating temperature 0° to +40°C (+32° to +104°F)
Storage temperature -40° to +90°C (-40° to +194°F)
Waterproof rating IP68 5 m (16 ft)
Compliance CE, FCC
Cable length 3 m (10 ft), extendable up to 6 m (20 ft)
Cable material PUR
Connector M12 5-pin circular
Connector diameter
 14.5 mm (0.57 in)
Weight 0.7 kg (1.54 lbs) including cable
