WALLAS DIESEL CONVECTION OVEN

SKU:
76D
POA

Description

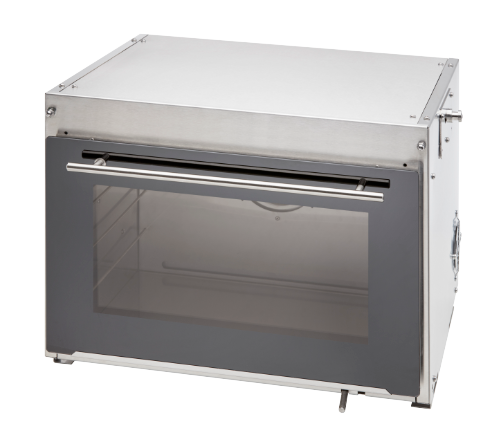

Wallas 76D - Convection oven

Cook on top of the wave of convection oven technology. New Wallas convection oven cooks faster with an enhanced air circulation. The highly precise thermostat maintains the cooking temperatureaccurately and enables you to prepare the meals you’ve always wanted. Wallas 76D new modern design and comes with a gimbal option as a standard. The new 3009 Advanced Control panel makes it easy to operate with all relevant information visible on the digital panel. Diesel convection oven is for boaters who want to have the same quality of life off-shore as at home.


New advanced control panel
The new control panel enables precise and stepless temperature control.
Gimbal attachment
The 76D offers two installation options: gimbal attachment or attachment to the rails.

New air cooled design
The stainless steel surface is not only robust and visually appealing, but it is also air-cooled, making it safe and enjoyable to use during the summer season

Fast and smooth cooking
The 76D utilizes the latest heat exchanging technology, ensuring that the diesel oven operates as fast, precise, and smoothly as home ovens. This technology allows for even heat distribution, preventing food from burning.


GREENBOOST

Cleaner Burning

Updated software optimizes fuel and electricity consumption

Calibrated to burn renewable fossil free diesel (e.g. HVO)

Larger burner burns fuel slower resulting in ultra low CO2 and NOX emissions

Extensively tested with Neste

Improved burner efficiency for more power



FEATURES

  • The Greenboost burner burns renewable fossil-free diesel cleanly and energy-efficiently, in addition to fossil-based diesel.
  • Combustion air is taken from inside the boat and exhaust gas is safely vented outside keeping the indoor air clean and odorless.
  • Improved convection air flow is offered by the 76D compared to its predecessor, resulting in better cooking performance.
  • A higher maximum temperature range and lower minimum temperature are provided for enhanced cooking versatility and precision.
  • Safety and durability are enhanced by the cooled envelope design.
  • Feeding fuel directly from the main tank of the vessel saves space and eliminates the need for a separate tank.
  • Laminar combustion is a safe burning process with no exposed flame.
  • The oven can be remotely serviced and updated via our cloud
    service.
  • Stability, even in challenging environments, is ensured by the option for gimbal installation.
  • Domestic style convection oven cooks evenly.
  • Thermo sensors maintain a precise temperature level for fast and accurate cooking times.
  • Unlike propane cooking systems, Wallas 76 D diesel oven does not require gas inspections.
  • User-friendly operation and easy access to information are enabled by the new control panel and PCB.



HEATING
POWER

FUEL
CONSUMPTION

ELECTRICITY
CONSUMPTION

TECHNICAL SPECIFICATIONS

Fuel: Diesel, HVO renewable diesel
Power: 1000 – 3000 W / 3,400 – 10,200 BTU

Operating Voltage: 12 V
Fuel Consumption: 0,1-0,3 l/h / 3.4-10.14 oz/h

Electricity Consumption: 0,8-1,9 A
Length: 479 mm / 18 7/8″
Width:  435 mm / 17 1/8″
Height: 385 mm / 15 3/16″
Weight: 24,5 kg (54 lbs)
Colors: Stainless steel

RECOMMENDED BUILDS

Boats, Camper vans (retrofitted), trailers, cottages, tiny houses

STANDARD PACKAGE CONTENT

Oven
Control Panel, wire
Fuel line 4 m (13 ft)
Power cable 4 m (13 ft) with connector and integrated fuse 15 A
Accessory bag including essential clamps and screws

MATERIALS

Stainless Steel, High-Grade Aluminum, Other Corrosion-Resistant Materials

Technical values are measured in a reference measurement wall, which is constructed to represent a typical boat installation. Values have been measured with maximum length of ducting, exhaust pipe, fuel line, and power cord. The figures allow for 10 % reserve – yours may vary.

Wallas diesel stoves, ovens, and heaters are designed to run with standard road and boat diesel, as well as renewable fossil free diesel. Check with your distributor for further details on best options for your needs.
