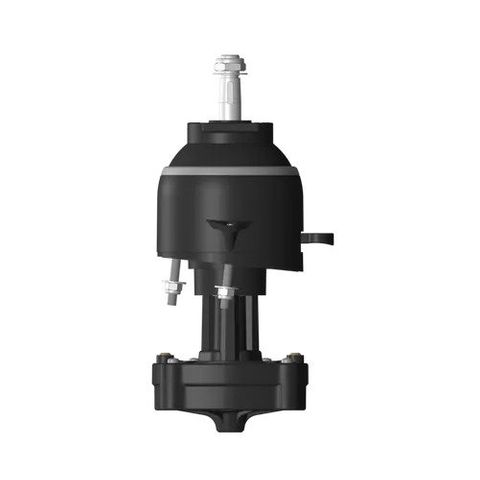

PLANETARY 150 HELM WITH TILT MECHANISM

SKU:
TH1
Price:
$583.14 inc. GST

Description

Mechanical Helm with Tilt Mechanism

Planetary 150 Mechanical Steering Systems are suitable for use on

Power Boats with engine up to 150HP
Power Assisted Stern Drive Boars with maximum wheel diameter 16”
Multiflex Marine SC16 Steering Cables

Key Features
• Tilt range from 0° to 48° with five locking positions
• Made of high-quality corrosion resistant material
• Uses similar mounting footprint to competitors
• Light weight and robust design
• Stainless Steel AISI 376L shaft


Suitable for Use On
• Power Boats with engine up to 150hp
• Power Assisted Stern Drive boats with maximum wheel
diameter of 16”


Notes
• TH1 should not be used on boats where engine power exceeds
the boat manufacturers specified horsepower rating
• This system is for single station use only
Other Supporting Products
• Steering Cable SC-16-XX (XX is the length of cable in feet).
Output ends in stainless steel

Data

Helm Part Number TH1
Weight (kg) 3.6
Number of Steering Wheel Turns 4 approximately
Maximum Steering Wheel Diameter 16 inch (400mm)
Shaft Length 97mm
Maximum Travel 9 inch (230mm)
Maximum Bend Radius 8 inch (200mm)
Maximum Working Load at Tiller end 5,000 N (500kg)
