WALLAS SINGLE STOVE BLACK

SKU:
800DSLBLACK
Price:
$2,336.02 inc. GST

Description

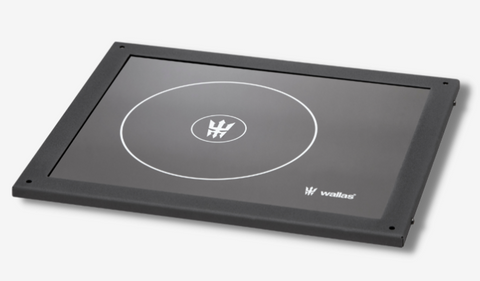

Wallas 800DSL ceramic diesel stove.

The new Wallas 800DSL stove is the best choice for small boaters with limited space – suitable for even the most demanding boater/chef! The 800DSL features the Wallas Design ceramic surface, making it easy to clean and comfortable to use. The new Wallas GB burner works well with all current road diesels and is designed to work with future diesels that may include more renewable components. The new burner generates ultra-low emissions (NOx and HC), very important for environmentally minded customers who appreciate protecting their future boating environment.

900 – 1400 W
3,000 – 4,700 BTU

Marine Diesel Cooktop for Small Spaces

Wallas 800 DSL, a one-plate cooktop, is easy to install even in small spaces and as the fuel can be fed from the fuel tank of the boat, it releases even more valuable space for other purposes. Simply wipe the ceramic surface clean and the modern seamless design blends in with the rest of the cabin. 800 DSL diesel stove can also be transformed into an air heater by installing a blower lid (additional accessory), which blows warm air and does what is most important for small boats: Saves space!



SIMPLE OPERATION WITH PI THERMO CONTROL PANEL
Ceramic cooktop is easy to operate with the power knob similar to domestic stoves


START & STOP
Start and stop the stove simply by a press of a button


HEAT CONTROL
Adjust cooking heat steplessly by turning the heat knob


HEATER BLOWER LID WARMS UP THE INDOOR AIR
220 D Blower Lid accessory is a convenient addition


DIESEL HEATER PRODUCES DRY HEAT
The heater blower lid blows warm air for cabin heating


THERMOSTAT MODE
Use heater in PI Thermo Mode to set a desired indoor temperature


MANUAL MODE
Use Manual Mode, when you prefer to control heat steplessly with the knob


GREENBOOST

Cleaner Burning

Updated software optimizes fuel and electricity consumption

Calibrated to burn renewable fossil free diesel (e.g. HVO)

Larger burner burns fuel slower resulting in ultra low CO2 and NOX emissions

Extensively tested with Neste

Improved burner efficiency for more power



The Greenboost burner burns renewable fossil-free diesel cleanly and energy-efficiently, in addition to fossil-based diesel.

Combustion air is taken from inside the boat and exhaust gas is safely vented outside keeping the indoor air clean and odorless.

The exhaust gas also carries the moisture in the indoor air out keeping the air dry.

Fully enclosed laminar burning process ensures a quiet sound level and dries the indoor air.

Perfect for environmentally minded boaters and campers.

Variable output eliminates system cycling and reduces noise.

Brushless blower motors have a very long life-cycle, supporting reliably long service intervals.

Feeding fuel directly from the main tank of the vessel saves space and eliminates the need for a separate tank.

Durable Finnish design and manufacturing keep your Wallas running through tough weather conditions.

Excellent for small spaces.

Stylish ceramic stove is easy to install and keep clean.

Laminar combustion is a safe burning process with no exposed flame.

Unlike propane stoves, diesel stoves do not require gas inspections.

High Altitude Mode adjusts the combustion when traveling in high altitudes.

Kettle holder (accessory 1012) keeps pots safely in place if used in rougher weather.








HEATING
POWER

Wallas 800 DSL

FUEL
CONSUMPTION

ELECTRICITY
CONSUMPTION

TECHNICAL SPECIFICATIONS

Fuel: Diesel, HVO renewable diesel
Power: 900-1400 W (3,000-4,700 BTU)
Operating Voltage: 12 V
Fuel Consumption: 0,09-0,14 l/h (3.16-4.9 oz/h)
Electricity Consumption: 0,7 A
Length: 331 mm(13 1/16″)
Width: 271 mm (10 11/16″)
Height: 180 mm (7 3/32″)
Weight: 7 kg (15.4 lbs)
Mounting: Flush mount
Colors: Stainless steel, black

800 DSL cooktop heater lid colors

Choose a stove and heater blower lid accessory from two colors: Stainless steel or black

RECOMMENDED BUILDS

Boats, Camper vans (retrofitted), trailers, cottages, tiny houses

STANDARD PACKAGE CONTENT

Stove
PI Thermo Control Panel, wire 6 m (19.7 ft)
Fuel line 4 m (13 ft)
Tank feed through
Power cable with connector and integrated fuse 15 A, 4 m (13 ft)
Accessory bag including essential clamps and screws

* Blower lid is an additional accessory (220)

MATERIALS

Stainless Steel, High-Grade Aluminum, Other Corrosion-Resistant Materials

Technical values are measured in a reference measurement wall, which is constructed to represent a typical boat installation. Values have been measured with maximum length of ducting, exhaust pipe, fuel line, and power cord. The figures allow for 10 % reserve – yours may vary.

Wallas diesel stoves and heaters are designed to run with standard road and boat diesel, as well as renewable fossil free diesel. Check with your distributor for further details on best options for your needs.
