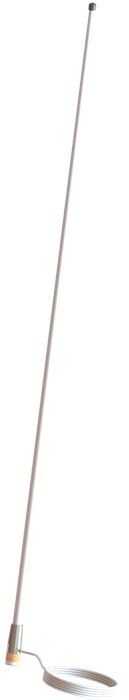

SCAN VHF54 + 20M CABLE, 1.5M LENGTH

SKU:
11054-622
Price:
$171.35 inc. GST

Description

Long range high gain International Maritime VHF Antenna for the leisure market

VHF antenna especially made for leisure boats
Economical replacement for all professional marine VHF antennas
Improved gain compared to other high quality marine VHF antennas
Reduced antenna weight compared to similar marine VHF antennas
Matching designs available for other frequency bands
For mounting on all US style brackets with 1"-14NF threaded stud

Details

Long range high gain International Maritime VHF Antenna for the leisure market

  • VHF antenna especially made for leisure boats
  • Economical replacement for all professional marine VHF antennas
  • Improved gain compared to other high quality marine VHF antennas
  • Reduced antenna weight compared to similar marine VHF antennas
  • Matching designs available for other frequency bands
  • For mounting on all US style brackets with 1"-14NF threaded stud

Electrical specifications

FREQUENCY

156 - 162.5 MHz (International Maritime VHF-band)

BANDWIDTH

6.5 MHz

ANTENNA TYPE

End-fed full 1/2 λ dipole - no groundplane needed

IMPEDANCE

50 ohm

VSWR

< 1.6:1

POLARISATION

Vertical

GAIN

4 dB (Marine), 0.5 dBd, 2.6 dBi

RADIATION PATTERN

Omni-directional

MAX. INPUT POWER

150 W

ANTISTATIC PROTECTION

Direct Ground (DC-short)

Mechanical specifications

COLOR

White

LENGTH

1375 mm

WEIGHT

700 g (with 10 m cable), 1060 g (with 20 m cable)

MOUNTING

On brackets with 1"-14NF threaded stud (US style)

MOUNTING PLACE

On deck or mast

MATERIALS

PU-painted glass fibre, PCB, PE, copper and chrome plated solid brass

OPERATING TEMPERATURE

-55C to +70C (IEC 60068-2-1, IEC 60068-2-2)

CONNECTOR

No connector supplied

CABLE

10 or 20 m white RG58 cable

SERIAL NO.

On product label
