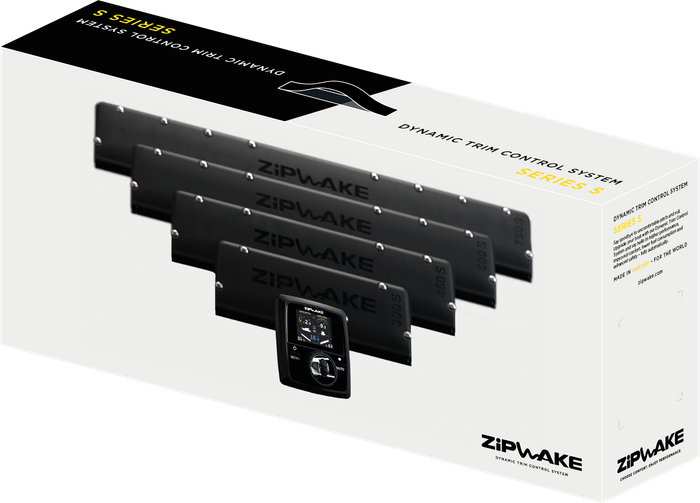

ZIPWAKE S SERIES, 300MM CHINE KIT

SKU:
2011732
Price:
$4,952.12 inc. GST

Description

The Dynamic Trim Control System Series S incorporates a state-of-the-art family of durable, fast-acting Interceptors and unique 3D controls which provide the driver with unmatched, user-friendly, intuitive and precise control of running trim, heel or heading. The system is fully automatic and significantly enhances the boat’s performance, fuel economy, comfort and safety.

Includes:
(2) Interceptors. Width: 300mm (11.81")
(1) 3m Cable & Cable Covers
(1) Distribution Unit with 4m power cable
(1) Control Panel with 7m standard cable
(1) Extension cable

  • Fully automatic

- Dynamic pitch and roll control

- Steering and turn enhancement

  • Built-in GPS and motion sensors
  • Unique and intuitive 3D controls
  • Sunlight readable color display
  • Instant state user feedback
  • Auto power on/off via ignition key sense
  • Full range of electrical interfaces
  • Waterproof
  • Auto dimming / night mode
  • Upgradable via USB stick
  • Up to four control panels in the system
  • Surface, flush or gimbal bracket mount
  • Manages installation configurations from 1 up to 6 interceptors
  • Auto Cleaning - Selectable periodic cleaning cycle - Prevents fouling inside the interceptor
  • Monitored and/or controlled from external devices, e.g. multifunction displays or plotters via its NMEA 2000 interface

SPECIFICATIONS



Model

IT300-S CHINE

Length

300 mm

Weight

 2.2 kg

Max. Boat Speed

60 knots

Blade Stroke

30 mm (1.2 in)

Blade Rate

20 mm/s (0.8 in/s)

Thru-Hull Cable Fitting

Concealed or above waterline

Servo actuator

SU-S

Cable Length

3 m (10 ft), extendable up to 6 m (20 ft)

Cable Material

PUR

Connector

M12 5-pin circular

Connector Diameter

14.5 mm (0.57 in)

Supply Voltage

12 - 32 V DC

Power Consumption

25 W max

Operating Temperature

0° to +40°C (+32° to +104°F)

Storage Temperature

-40° to +90°C (-40° to +194°F)

Waterproof Rating

IP68 5 m (16 ft)

Compliance

CE, FCC

Connector Diameter

14.5 mm (0.57 in)
