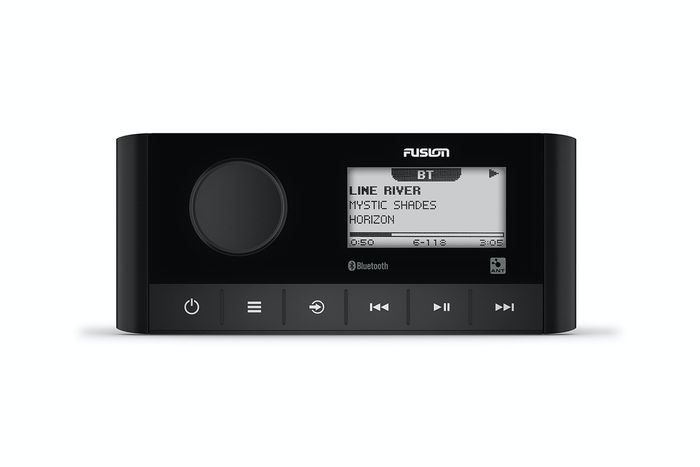

MS-RA60 MARINE STEREO
SKU:
010-02405-00
Price:
$389.00 inc. GST
Description
The MS-RA60 is our most economical marine stereo yet, featuring modern aesthetics, Multi-Zone™ technology in two zones and advanced connectivity options in a compact form factor. Designed for quality audio entertainment in the harsh marine environment, a perimeter bonded, anti-fogging LCD is integrated into the IPX6 and IPX7 water resistant black front face – making the MS-RA60 an attractive addition to your helm.
MODERN, COMPACT AND ECONOMICAL
- The MS-RA60 is the most economical marine stereo from Fusion yet, featuring modern aesthetics, Multi-Zone™ Technology in two zones and advanced connectivity options in a compact form factor.
- Bonded LCD improves durability and protection against condensation and fogging.
- Built-in Class-D amplifier delivers higher efficiency and greater output.
- Enjoy convenient over-the-air software updates via Bluetooth® technology from the Fusion-Link™ app1.
- Multi-Zone Technology gives you control of two separate audio zones.
- Control your music from your compatible smart device or Garmin watch.
Overview
| Physical dimensions (H x W x D) | 68 x 156.90 x 103.20 mm (2.68″ x 6.18″ x 4.06″) |
| Weight | 11.10 oz (316 g) |
| Water rating | IPX6 and IPX7 (front panel only, when properly installed) |
| Power input | 10.80-16 VDC |
| Operating temperature range | 32° to 122° F (0° to 50° C) |
| Current (max.) | 15 A |
| Bluetooth wireless range | Up to 30 ft (10 m) |
| ANT wireless range | Up to 10 ft (3 m) |
| Wireless frequencies/protocols | Bluetooth 2.40 GHz @ 12 dBm nominal |
| Compass-safe distance | 5.90″ (150 mm) |
Stereo features
| Display | 2.30″ perimeter bonded monochrome dot matrix LCD |
| Built-in amplifier | Class-D (minimum 4 ohm impedance) |
| Peak power | 180 W |
| Rated power output (4 Ohm) | 22 W rms x 4 @ 14.40 V input, 4 ohm, 10 % THD |
| Fusion-Link™ control | Yes (with compatible Apple and Android devices) |
| Fusion-Link Lite control | Yes (with compatible Garmin watch) |
| Multi-Zone™ technology | 2 zones |
| Bluetooth wireless technology | Yes |
| ANT wireless technology | Yes |
| DAB+ | Yes (DAB tuner built in) |
| Multi-language interface | Dutch/English/French/German/Italian/Spanish |
| Software updates | Over-the-air software updates via Bluetooth wireless technology using the Fusion-Link app |
| Warranty | 3 year |
Sources
| Sources | AM/FM/Bluetooth/AUX x1/DAB+ (available in Europe and Australia only) |
Connectivity
| Auxiliary input | One RCA input (AUX) |
| AM/FM radio | One Motorola antenna connector port |
| Speaker | 4 x speaker connections (2 amplified zones) |
| RCA Pre-out (left, right and subwoofer) | 1 zone (requires external amplification) |
| Line out | Zone 1: L + R (requires external amplification) |
| Subwoofer out | Zone 1 (requires external amplification) |
