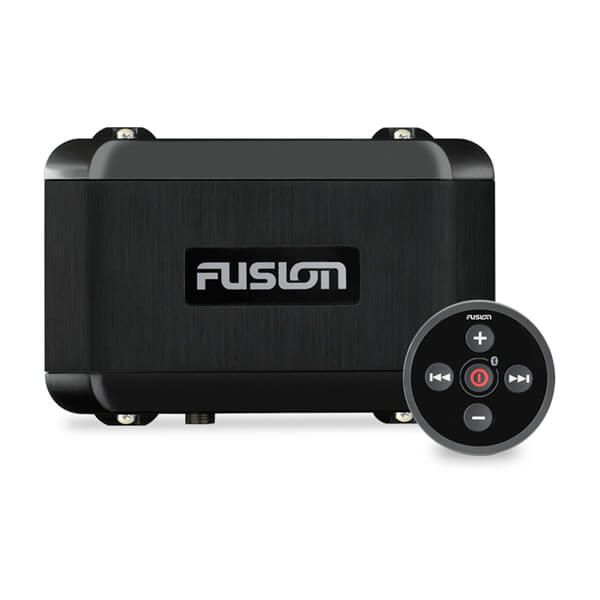

MS-BB100 TRUE MARINE BLACK BOX MEDIA PLAYER
Description
Designed to save space at the helm, the compact design of the MS-BB100 allows it to be mounted in out-of-way places such as storage lockers, inside helm consoles and other concealed compartments. An IPX7 rated wired remote control is included in the box for you to control the MS-BB100. You can mount the wired remote with a conventional flush finish or integrate it into the helm for a premium flat finish.
Features:
Compact form factor allows for easy installation on your boat.
Control the BB100 using the included IPX7 wired remote control.
Built-in Class-AB amplifier delivers efficiency with reduced distortion.
Multi-Zone™ technology gives you control of two separate audio zones.
Control your music from a compatible multifunction display (MFD) or smart device.
Compact black box entertainment solution
- There is no need to compromise on quality audio entertainment due to limited helm space with the value packed Fusion MS-BB100 compact black box entertainment solution.
- Compact form factor allows for easy installation on your boat.
- Control the BB100 using the included IPX7 wired remote control.
- Built-in Class-AB amplifier delivers efficiency with reduced distortion.
- Multi-Zone™ technology gives you control of 2 separate audio zones.
- Control your music from a compatible multifunction display (MFD), smart device or Garmin watch.
General |
|
| Physical dimensions | Black Box (HxWxD): 2.63″ x 6.10″ x 3.70″ (60 x 155 x 94 mm) Remote (Diameter x Depth): 2.56″ x 2.13″ (65 x 54 mm) |
| Water rating | Black Box: IPX3 (when properly installed) Remote: IPX7 (front panel only, when properly installed) |
| Power input | 10.8-16 VDC |
| Operating temperature range | 32° to 122° F (0° to 50° C) |
| Current (max.) | 15 A |
| Fuse | 15 A |
| NMEA 2000 LEN | 1 (50 mA) |
| Bluetooth wireless range | Up to 30 ft. (10 m) |
| ANT wireless range | Up to 10 ft. (3 m) |
| Wireless frequencies/protocols | Bluetooth 2.4 GHz @ +1.9 dBm nominal ANT 2.4 GHz @ +1.9 dBm nominal |
| Compass-safe distance | 5.9″ (150 mm) |
Stereo features |
|
| Built-in amplifier | Class-AB |
| Peak power | 200 W |
| Rated power output (4 Ohm) | 26 W rms x 4 @ 14.4 V input < 10% THD |
| Fusion-Link™ control | Yes (MFD, smartphone and Garmin watch) |
| Multi-Zone™ technology | 2 zones |
| Bluetooth wireless technology | Yes |
| ANT wireless technology | Yes |
| DAB+ ready | Yes (requires DAB100A antenna module) |
| NRX remote compatibility | Yes |
| Software updates | USB |
| Warranty | 1 year |
Sources |
|
| Sources | AM/FM/Bluetooth/USB audio/iPhone/iPod/AUX x1/AOA/ DAB+ ready (available in Europe and Australia only) |
Connectivity |
|
| Auxiliary input | 1 RCA input (AUX) |
| NMEA 2000 | One USB 2.0 port |
| USB 2.0 | One USB 2.0 port |
| AM/FM radio | One Motorola antenna connector port |
| Speaker | 2 connections (2 zone amplified) |
| RCA Pre-out (left, right and subwoofer) |
2 zones (requires external amplification) |
| Line out | 2 (1 x L + R per zone, requires external amplification) |
| Subwoofer out | 1 x mono output (requires external amplification) |
