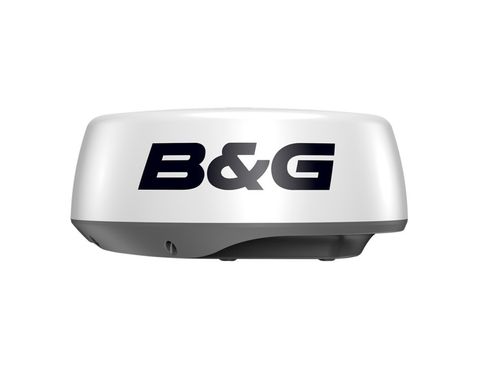

B&G HALO20 RADAR

SKU:
000-14540-001
Price:
$2,759.00 inc. GST

Description

B&G HALO20 24NM 20-INCH PULSE COMPRESSION RADAR

A cost-effective way to increase situational awareness and collision avoidance, HALO20 is a compact dome radar with pulse compression technology that detects collision hazards and other targets in close and up to 24 nautical miles away. With its small footprint and low profile, HALO20 is the perfect radar solution for budget-conscious sailors.

Key Features

  • 6W Pulse Compression
  • Radar use modes (no bird mode)
  • Radiation safe*
  • 24nm range
  • 24rpm antenna rotation
  • Low Profile & Light weight 5.9kg
  • Unrivalled Short-Range
  • InstantOn™
  • MARPA Target tracking
  • Low power consumption
  • Blanking sectors
  • Guard zones
  • LED Lights
  • Blanking sectors
  • Guard zones

Overview

HALO20 radar is a cost-effective solution for boaters to increase situational awareness and collision avoidance, detecting collision hazards and other targets nearby and up to 24 nautical miles away. With its small footprint and low profile, HALO20 is the perfect radar solution for more budget-conscious buyers with smaller sportfishing vessels and dayboats. With its small footprint and low profile, HALO20 is the perfect radar solution for more budget-conscious buyers with smaller sportfishing vessels and dayboats. HALO20 radar also delivers a comprehensive range of features to enhance your situational awareness and on-water safety. Boaters can monitor selected collision hazards with MARPA target tracking, tracking up to 10 targets. Whether navigating through crowded waterways or contending with poor visibility, HALO20 radar cuts through the clutter to give boaters a clear and current picture of their surroundings.

Compliance CE, FCC (ID:RAYHALO20), IC: 978B-HALO20
Environmental IEC60945 : 2002
Operating Temperature -25° to +55°C (-13° to +130°F)
Relative humidity +35° C (95° F), 95% RH
Waterproof IPX6
Max relative wind velocity 51 m/sec (100 Knots)

Power & Dimensions

Power consumption (with 10m cable) Operating: 17.to 20W at 13.8 V
Standby 3.9 W (Typ.) at 13.8 V DC ~ 170 mA
DC input (at radar end of cable) 9 V to 31.2 V DC (12/24 V systems)
Reverse polarity protection Yes
Minimum startup voltage 10.75 V DC
Transmitter source (pre-heating time) No magnetron – Instant On
Outside dimensions Ø Diameter 510 mm (20”), Height 223 mm (8.8”)
Scanner weight (no cable) 5.9kg (13 lbs)

Radar and Antenna parameters

Radar ranges 100 m (328 ft) to 24nm with 17 range settings, (nm/sm/km)
Rotation (mode dependent) 20-24rpm
Transmitter frequency X-band - 9.4 to 9.5 GHz
Transmitter source (warm-up time) No Magnetron – all solid state. Instant On™
Plane of polarization Horizontal Polarization
Transmitter peak power output 6W
Minimum range 6 m (19.7 ft)
Sweep repetition frequency 700-2400 Hz (mode dependent)
Pulse length 0.04 - 64 usec
Sweep bandwidth 48 MHz max
Horizontal beam width (Tx and Rx antenna) 4.9° nominal (-3 dB width)
Target Seperation Control Not available
Vertical beam width (Tx and Rx antenna) 25° (-3B width nominal)
Side lobe level (Tx and Rx antenna) Below -18 dB (within ±10°);Below -24 dB (outside ±10°)
Noise figure Less than 5 dB nominal

Communications/Cabling

Protocol Ethernet 100 Base T
Maximum inter connecting cable length 30 m (98.5 ft) – available as option, use NEP-2 for longer cable runs
