B744V W/N2K SPEED/TEMP

SKU:
000-14804-001
Price:
$949.00 inc. GST

Description

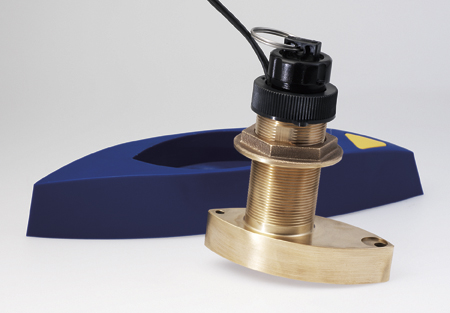

XSONIC B744V Bronze 600 W Smart Thru Hull 50/200 Khz Depth/Temp w/HS Fairing Block : Black 9 pin connector: Cable length 10 m (33.0 ft)

The B744V is a smart and compact, bronze, thru-hull, 50/200 kHz multisensor that offers depth and NMEA2000 Speed and temperature data. Ideal for use with our Sonarhub, Simrad / Lowrance echosounder for fishing in shallow to medium depths of water.

Key Features:

Depth/Speed/Temperature
One sensor does it all - an extremely cost effective option due to the requirement for just one hole in the hull.

Smart Speed/Temp
The removable smart speed/temp insert allows NMEA2000 to be sent directly from the transducer to other instruments.

Wide Operating Range
From 1 knot to 45 knots.

Highly Accurate Sounding
Provides extremely accurate echosounding data, even at speeds of over 30 knots.

Dual Frequency
Works at 50 kHz and 200 kHz for good target detail in shallow water and excellent bottom tracking in deep water.

Bronze
Built to withstand the environment.

Innovative Housing
Fully recessed into its custom high-performance fairing. Also, If there is a need to remove the transducer, the self-closing valve minimises water flow into the boat.

The B744V is a TRIDUCER® Multisensor featuring depth, speed, and temperature in a single housing. The 50/200 kHz, dual-frequency, single, ceramic element provides great target detail in shallow water at 200 kHz and good deep-water bottom tracking at 50 kHz.

Features

  • Depth, speed, and temperature in one housing
  • 600 W Dual-frequency element
  • 50 kHz with a wide 45° beamwidth for depth performance to 353 m (1,200')
  • 200 kHz with a 12° beamwidth for depth performance to 206 m (700')
  • Bronze housing with a high-performance fairing for optimal bottom tracking at higher speeds
  • Self-closing water valve reduces water flow into the hull when paddlewheel insert is removed
  • Fins on sides of paddlewheel cavity improve accuracy in cross-flow conditions

Specifications

Weight 2.5 kg (5.5 lb.)
Recommended Boat Length Up to 9 m (30')
Hull Material Fiberglass or wood
Hull Deadrise Up to 24° with fairing
Acoustic Window Urethane
Hole Diameter 51 mm or 2"
Speed Range 1 to 45 knots (1 to 52 MPH)
Includes High-performance fairing and mounting hardware
