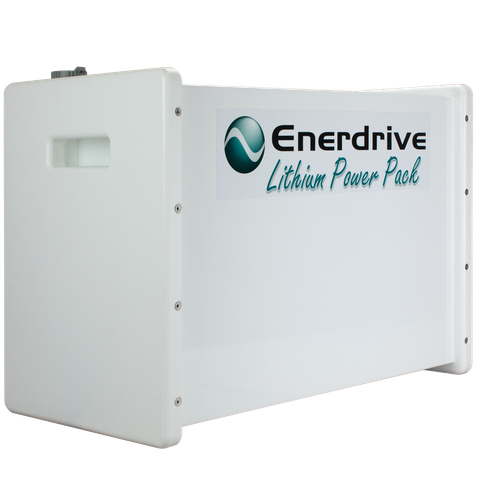

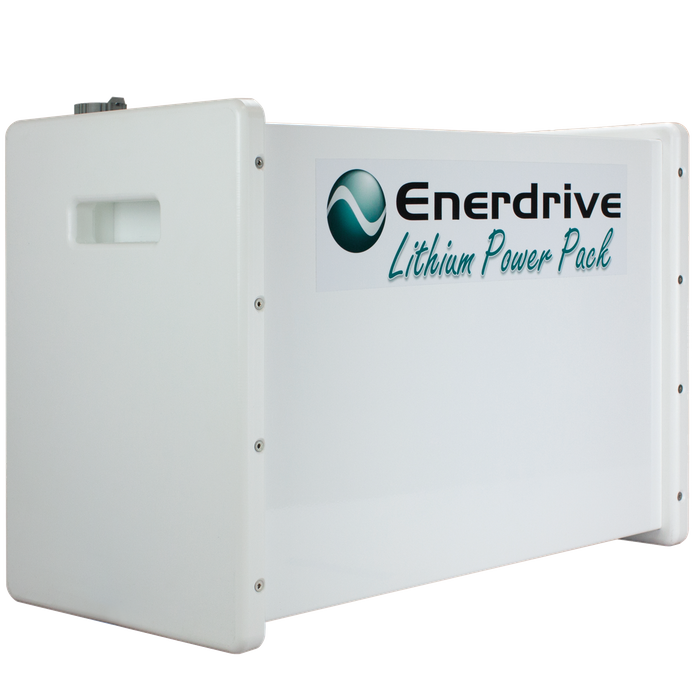

ENERDRIVE 200AH 24V LITHIUM BATTERY W/ ABS

SKU:
EPL-200AH-24V-SLIM-A
POA

Description

Lithium Ion batteries have a high energy density and are perfect for cyclic applications. They offer savings of up to 70% in volume and weight compared to traditional lead-acid batteries. Lithium Ion batteries offer ultra-fast charging and discharging, high efficiency and three times as many charging cycles (2000 full cycles) compared to traditional lead acid batteries.

Enerdrive’s Pro Series Lithium-iron-phosphate (LiFePO4) is the safest of the mainstream li-ion battery types. The nominal voltage of each cell is 3,2V. A 12,8V Enerdrive battery therefore consists of 4 cells connected in series.

All lithium Ion batteries require a battery management system (BMS). There is no way around this. There are numerous examples of catastrophic failures where no BMS has been used.

The Enerdrive Pro SeriesLithium battery packs incorporate Active Cell Balancing across the range. The balancing method used is Dynamic Energy Transfer. This allows for automatic balancing of the cells during charging, discharging and storage. Any cells with high voltage density will transfer energy to the lower cells in the pack. This method of cell balancing utilises the energy within the battery pack to balance the cells unlike passive balancing systems which bleed this excess energy off as heat to keep the battery balanced at the top end of the charging cycle, wasting energy already stored within the battery.

The Enerdrive Active Balancing System also incorporates individual cell “Hi -Voltage & Low-Voltage” disconnect feature to interface with the Enerdrive Advanced BMS Driver, switching (off/on) of charging sources & consumer loads. Running Active Cell Balancing allows Enerdrive to parallel and series connect multiple batteries within the system. This offers 12v, 24v, 36v &,48v systems with up to the possibillity of 1500Ah+ capacity.

Included in the construction of the battery case is a unique battery cable coupling system. This aircraft designed system integrates the battery pack to Enerdrives Lithium Installation Kit.

The installation kit incorporates the Enerdrive Advanced BMS Rely Driver, ePRO monitor, Main DC Fuse and a load disconnect latching relay. This kit is connected to the battery and designed to work hand in hand with the batteries Active Balancing System for controlling charging and discharging sources for ultimate protection of your investment.

Many companies will just sell you the battery and if lucky, you will get a BMS incorporated. They neglect to tell you that disconnecting loads and charging sources at the critical times requires more equipment to be installed to manage these operations.

The Pro Series battery is sold as a complete system installation only. Please contact Enerdrive for more information.

Features

Lithium Ion batteries have a high energy density and are perfect for cyclic applications. They offer savings of up to 70% in volume and weight compared to traditional lead-acid batteries. Lithium Ion batteries offer ultra-fast charging and discharging, high efficiency and three times as many charging cycles (>1500 full cycles) compared to traditional lead acid batteries.

Enerdrive’s Pro Series Lithium-iron-phosphate (LiFePO4) is the safest of the mainstream li-ion battery types. The nominal voltage of each cell is 3,2V. A 12,8V Enerdrive battery therefore consists of 4 cells connected in series.

All lithium Ion batteries require a battery management system (BMS). There is no way around this. There are numerous examples of catastrophic failures where no BMS has been used.

The Enerdrive Pro Series Lithium battery packs incorporate Active Cell Balancing across the range. The balancing method used is Dynamic Energy Transfer. This allows for automatic balancing of the cells during charging, discharging and storage. Any cells with high voltage density will transfer energy to the lower cells in the pack. This method of cell balancing utilises the energy within the battery pack to balance the cells unlike passive balancing systems which bleed this excess energy off as heat to keep the battery balanced at the top end of the charging cycle, wasting energy already stored within the battery.

The Enerdrive Active Balancing System also incorporates individual cell “Hi -Voltage & Low-Voltage” disconnect feature to interface with the Enerdrive Advanced BMS Driver, switching (off/on) of charging sources & consumer loads. Running Active Cell Balancing allows Enerdrive to parallel and series connect multiple batteries within the system. This offers 12v, 24v, 36v &,48v systems with up to the possibillity of 1500Ah+ capacity.

The installation kit incorporates the Enerdrive Advanced BMS Rely Driver, ePRO Plus monitor, Main DC Fuse and a load disconnect latching relay. This kit is connected to the battery and designed to work hand in hand with the batteries Active Balancing System for controlling charging and discharging sources for ultimate protection of your investment.

Many companies will just sell you the battery and if lucky, you will get a BMS incorporated. They neglect to tell you that disconnecting loads and charging sources at the critical times requires more equipment to be installed to manage these operations.

The Pro Series battery is sold as a complete system installation only. Please contact Enerdrive for more information.

Specifications

EPL-200AH-12V-SLIM

Model EPL-200AH-12V-SLIM
Nominal Capacity 200Ah 2560Wh
Nominal Voltage 12.8V
Life Cycles* 80% DOD ≥1500 Cycles
Self-discharge Rate ≥3%
Weight 28kg Approx.
Dimensions L x W x H 824 x 74 x 301mm (Download PDF)(Download PDF)
  Charge Discharge
  Mode: CC & CV
Max & Min Voltage: 15V 11.5V
Standard Current 0.3C,66A 0.3C,66A
Max Constant Current 2C,400A 3C,600A
Operating Temperature 0°C-+45°C -20°C-+60°C
Max Charge Voltage 14.20V
Float Voltage 13.50V
Note: Specifications subject to change without notice.



Active Cell Balancing & Protection Info

Balancer Type Active
Balancing Method Dynamic Energy Transfer
Battery Capacity Limited 50Ah-1000Ah LifePo4 Lithium Battery
Working Voltage Range 2.0v – 4.2v
Low – High Cell Voltage Protection 2.8v – 3.8v
Battery Cell Count Limit 2 – unlimited
Power Consumption <50mW (<0.004A)
Acceptable Constant Balance Current 6A
Peak Balance Current 10A
Voltage Variance Between Cells <100mV
Working Efficiency when Balance Current is 1A >94%
Working Temperature -40 – + 80c
Storage Temperature -40 – +100c
Note: Specifications subject to change without notice.

International Patent applies to Active Cell Balancer
