FUSION MARINE NRX300 REMOTE

SKU:
010-01628-00
Price:
$359.00 inc. GST

Description

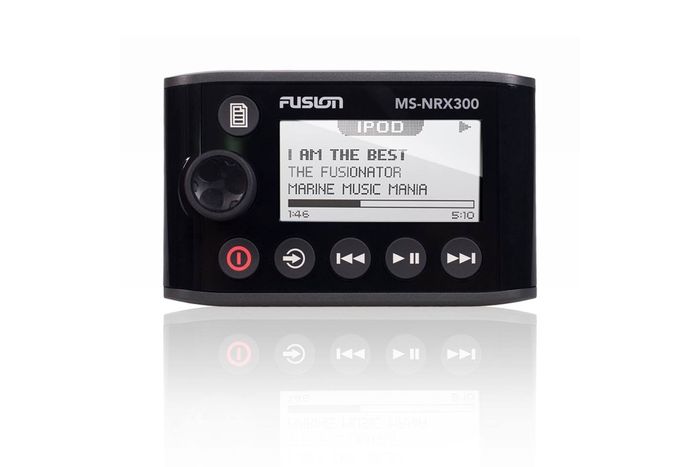

The MS-NRX300 NMEA 2000 Certified Wired Remote Control is an out of the box solution for adding localized control of a compatible Fusion marine entertainment system to any vessel.

The MS-NRX300 features a sleek new innovation: the glass helm flush mounting option. You can now choose either a flat mount for a stunning glass helm finish, or you can easily install with the conventional flush mount finish. Either way, the feature packed MS-NRX300 will provide everything you want from a wired remote and more.

CONTENTS OF THE BOX

1 x MS-NRX300 Remote with 1m (3.28Ft) Drop Cable
1 x Dust Cover
1 x 6m (20Ft) NMEA 2000 Backbone Cable
1 x NMEA 2000 T-Connector
1 x NMEA 2000 Female Terminator
1 x NMEA 2000 In-line Terminator
1 x Hardware mounting kit
1 x Mounting template
1 x Installation Instructions
1 x Warranty card

TAKE CONTROL OF YOUR AUDIO ENTERTAINMENT

  • A perfect solution for audio control, the Fusion® NRX300 wired remote allows you to enjoy localised audio control from any audio zone1 on board your boat.
  • Optically bonded monochrome LCD allows for easy navigation.
  • Quick and simple to install with plug-and-play setup.
  • Install with a conventional flush mount or integrate into the helm with a premium flat finish.

General
PHYSICAL DIMENSIONS (HXWXD) 70 x 110 x 50 mm
WATER RATING IPX7
POWER INPUT 10.8-16 VDC
OPERATING TEMPERATURE RANGE 0° to 50° C
CURRENT (MAX.) 110 mA at 12 VDC

Remote features
DISPLAY 2.6″ optically bonded monochrome LCD
SUPPORTED NMEA 2000 PGN DATA 127250 - Heading sensor reference (true, magnetic)
128259 - Water speed reference (paddle wheel, pitot tube, doppler log, correlation log, electromagnetic log)
128267 - Water depth (offset add or subtract)
129025 - Position (latitude and longitude)
129026 - Course Over Ground (COG) and Speed Over Ground (SOG) [COG reference true, magnetic]
129029 - Global Navigation Satellite System (GNSS) position data
129284 - Navigation data (ETA)
130306 - Wind data reference (apparent wind relative to the vessel centerline)
130310 - Water temperature and air pressure
130311 - Water temperature and air pressure
130312 - Temperature and temperature source (sea temperature)
WARRANTY 3 years

Connectivity
NMEA 2000 One USB 2.0 port
