HALO 20+ RADAR
Description

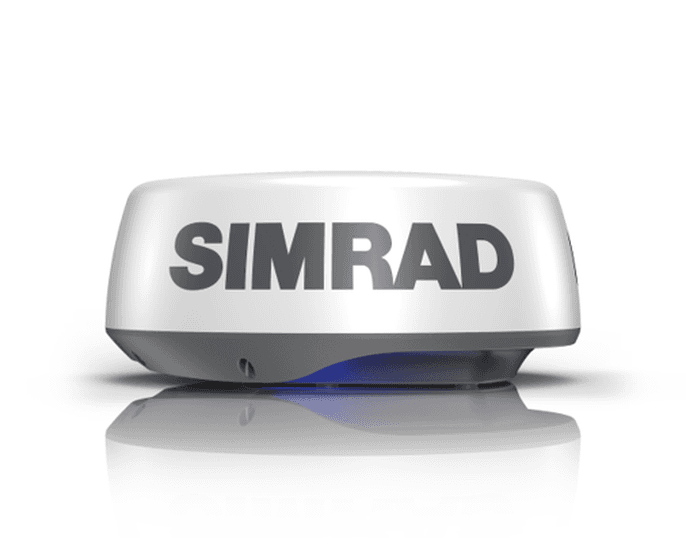

HALO20+ radar offers an almost real-time view, with industry-leading 60 RPM operation at close range for the ultimate in collision avoidance. Identify hazards in an instant with VelocityTrack™ Doppler technology, and enjoy simultaneous short and long-range coverage—up to 36 nautical miles — from one compact 20-inch dome antenna.
HALO20+ radar incorporates industry-leading 60 RPM rotation at ranges up to 2 nautical miles, delivering a full 360-degree sweep every single second. These ultra-fast updates give you an almost real-time view at close range, offering the ultimate view for collision avoidance. Whether you’re navigating through crowded waterways or contending with poor visibility, Halo radar cuts through the clutter to give you a clear and current picture of your surroundings
Overview
HALO20+ radar offers an almost real-time view, with industry-leading 60 RPM operation at close range for the ultimate in collision avoidance. Identify hazards in an instant with VelocityTrack™ Doppler technology, and enjoy simultaneous short and long-range coverage—up to 36 nautical miles — from one compact 20-inch dome antenna.
The Ultimate View for Collision Avoidance
HALO20+ radar incorporates industry-leading 60 RPM rotation at ranges up to 2 nautical miles, delivering a full 360-degree sweep every single second. These ultra-fast updates give you an almost real-time view at close range, offering the ultimate view for collision avoidance. Whether you’re navigating through crowded waterways or contending with poor visibility, Halo radar cuts through the clutter to give you a clear and current picture of your surroundings
VelocityTrack™ Doppler Technology Built-In
VelocityTrack™ technology provides instant visual feedback on whether targets are coming towards you or moving away. Using the Doppler effect, this feature automatically checks every target seen by your radar; there’s no need to manually select individual targets, and no limit to the number of targets on screen at one time. Simple colour coding highlights potential hazards, improving your situational awareness and further reducing your risk of collision.
Key Features
- 25W Pulse Compression
- VelocityTrack™
- Target Colouring
- Dual Range-No Compromise
- Industry 1st 60rpm high speed rotation
- Radar use modes
- Beam Sharpening that works
- 48/36nm range
- Low Profile & Light weight 6.9/ 5.9kg
- Unrivalled Short-Range
- Excellent target detection
- InstantOn™
- Low power consumption
| Compliance | CE, FCC (ID:RAYHALO20PLUS), IC: 978B-HALO20PLUS |
| Environmental | IEC60945 : 2002, |
| Operating Temperature | -25° to +55°C (-13° to +130°F) |
| Relative humidity | +35° C (95° F), 95% RH |
| Waterproof | IPX6 |
| Max relative wind velocity | 51 m/sec (100 Knots) |
Power & Dimensions
Power consumption (with 10m cable)
| Operating | 17 to 29W at 13.8 V |
| Standby | 3.9 W (Typ.) at 13.8 V DC ~ 170 mA |
| DC input (at radar end of cable) | 9 V to 31.2 V DC (12/24 V systems) |
| Reverse polarity protection | Yes |
| Minimum startup voltage | 10.75 V DC |
| Transmitter source (pre-heating time) | No magnetron – Instant On |
| Outside dimensions | Ø Diameter 510 mm (20”), Height 223 mm (8.8”) |
| Scanner weight (no cable) | 5.9kg (13 lbs) |
Radar and Antenna parameters
| Radar ranges | 100 m (328 ft) to 36nm with 18 range settings, (NM/SM/Km) |
| Rotation (mode dependent) | 20 - 60 rpm (mode and MFD dependent) |
| Transmitter frequency | X-band - 9.4 to 9.5 GHz |
| Transmitter source (warm-up time) | No Magnetron – all solid state. Instant On™ |
| Plane of polarization | Horizontal Polarization |
| Transmitter peak power output | 25W |
| Minimum range | 6 m (19.7 ft) |
| Sweep repetition frequency | 700-2400 Hz (mode dependent) |
| Pulse length | 0.04 - 64 usec |
| Sweep bandwidth | 48 MHz max |
| Horizontal beam width (Tx and Rx antenna) | 4.9° nominal (-3 dB width) |
| Target Seperation Control | OFF: 3.9°+/-10% (-3 dB width nominal), LOW: ~3.4°+/-10% (-3 dB width nominal), MED: ~2.5°+/-10% (-3 dB width nominal), HIGH: ~2.0°+/-10% (-3 dB width nominal) |
| Vertical beam width (Tx and Rx antenna) | 25° (-3B width nominal) |
| Side lobe level (Tx and Rx antenna) | Below -18 dB (within ±10°);Below -24 dB (outside ±10°) |
| Noise figure | Less than 5 dB nominal |
Communications/Cabling
| Protocol | Ethernet 100 Base T |
| Maximum inter connecting cable length | 30 m (98.5 ft) – available as option, use NEP-2 for longer cable runs |
