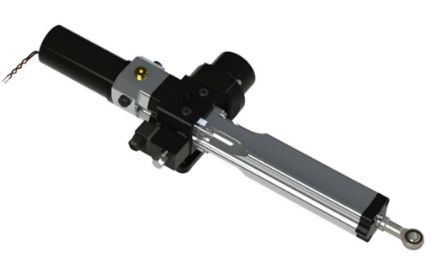

HYPRO ACTUATOR 1.0L 12V

SKU:
ML+40 10 12
Price:
$2,999.00 inc. GST

Description

This new compact unit is designed for smaller or lighter yachts with space restrictions and the lower thrust requirements. Our new actuator at full extension, is only 890 mm. That’s half a metre shorter than its bigger brother. Giving 5000 N of thrust with its 1.5 litre pump and 50w motor, the new mini actuator is still powerful for its size but typically only draws 14 amps. This is good news for the all-important batteries and brings down the cost of a course computer for the average yachtsman. Depending on vessel weight, sail plan and rudder forces the new actuator is suitable for sailing yachts of up to 45 feet (15 m).

The ML+40 marine autopilot Electro Hydraulic Linear Actuator combines all the elements of a hydraulic circuit in one compact unit. It has been designed specifically for the marine auto-pilot market for use on sailboats and power craft with displacement or fast planing hulls.

Designed for ease of installation and servicing the unit is supplied with a quick release mounting and tiller bolt. An optional rudder reference/feedback unit can be mounted directly onto the actuator and integral relief valves protect the unit and its mountings from being overloaded. The unit can be mounted in any attitude and is ideal where space is limited as no separate pipework or reservoirs need to be fitted.

ML+40 is supplied pre-filled and ready to install.

Voltage 12 / 24 VDC



Current Typical Amp-hour
580N at 25% duty
Typical Current
Intermittent 6350N
H.O time seconds
(no load)
  12v 24v 12v 24v
ML+40 10 2.0 1.0 19.0 9.0 13





Ingress protection: IP67
EMC Protection S EN 60945: 2002 (DC)
Ignition Protection BS EN 28846: 1993
EN ISO 10592: 1995 (Small Craft - Hydraulic Steering Systems)
Ambient Operating Temperature: -15 to +55 deg C
Max Operating Thrust: 6900N (Intermittent)
Relief Valve setting: 62 bar (7800N)
Orientation: Red lead to positive - Extends
Black lead to positive - Retracts
Clutch coil: 12 watt
Clutch connection: DIN 43650 (6-8 mm cable)
Fluid: ISO VG10 to VG40 hydraulic mineral fluid to ISO 6743-4 HV
Weight: 8 kg
