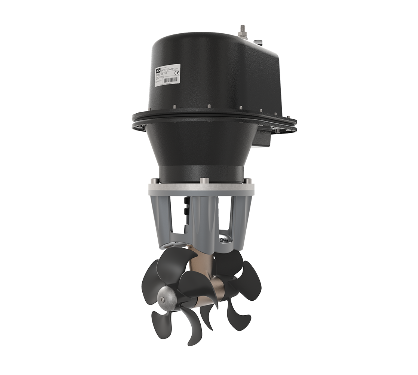

SE80 TUNNEL THRUSTER (24V-IP, 80KG)

SKU:
SE80/185T-24IP
Price:
$5,636.77 inc. GST

Description

SE80 Tunnel thruster, 24V-IP 80kg thrust ON/OFF-IP version

Properties



FLEXIBLE INSTALLATION

Sleipner offers installation flexibility to work with the space you have. Our thruster models allow installation at any angle on the tunnel, tailored to fit any space available in your vessel.



WATERPROOF HOUSING

Waterproof housing for use in areas exposed to water.



DC

Powered by direct current.



ANALOG

Sleipner analog signal cables with Plug & Play connectors are color-coded to match the wiring diagrams with high-quality connectors to ensure a correct installation.



OVERHEAT PROTECTION

Automatic detection of overheating of internal components. When an unsafe temperature is detected, the unit is automatically shut off to prevent overheating.



IGNITION PROTECTION

Our ignition-protected products are compliant with ISO 8846 and ensure gasoline or other flammable fumes cannot enter or be ignited.



GALVANIC SEPARATION

Immersed parts exposed to seawater are galvanic isolated from the onboard electrical system, eliminating stray currents.



SEALED DRIVE LUBRICATION

The thruster gearleg is pre-filled for lifetime lubrication and sealed using a long-time mechanical seal with ceramic and carbon surfaces for ultimate security against water intrusion.



SINGLE PROPELLER

A properly engineered single propeller system will be the most energy efficient thruster. Its compact design fits easily into narrow bows making it the perfect match for our smaller thruster range. With more than 60.000 single propeller thrusters in use, the single propeller has proven its reliability.



Q-PROP™

The Q-PROP™ has measured noise reductions of up to 75% in controlled environments. The five-bladed skew propeller reduces noise levels while maintaining exceptional efficiency. Some thruster models even see an increase in thrust power.

  • The expected noise reduction in average installations: 20-40%
  • Upgrade kits are available for most Sleipner thruster models with special adaptors



INTELLIGENT POWER CONTROL

Sleipner's patented intelligent power control provides a minimal delay between drive directions to reduce wear of the mechanical parts while monitoring solenoid functions. In the case of a solenoid lock-in, the thruster will automatically stop without extra user action or controlling the main switch.

Power Value
Operating Power Electric
Power Requirement 24V DC
Power Output 4.4kW / 6hp
Thrust at 24V 96kg / 212lbs
Thrust at 21V 80kg / 176lbs
Operational Running Limit (min) 2-3 duty cycle at 20°C
Nominal Current Draw 280A
Min. Battery CCA (DIN) 300
Min. Battery CCA (SAE) 570
Min. Battery CCA (EN) 520
Recommended fuse ANL 250
Operational Intention Value
Ideal Vessel Class Motor boat, Sail boat
Ideal Vessel Size 10-15m / 35-48ft
Bow Capability Yes
Stern Capability Yes
Retractable Capability No
External Mounting Capability No
Tunnel Capability Yes

Measurements Value
(H) Height 406mm / 15.98in
(L) Length 327mm / 12.87in
(W) Width 262mm / 10.31in
(ID) Internal Diameter 185mm / 7.28in
(WD) Water Depth 185mm / 7.28in
(TL) Recommended Tunnel Length 216mm / 8.50in
(TL min.) Minimum Tunnel Length 179mm / 7.05in
(T min.) Minimum Tunnel Wall Thickness 6mm / 0.24in
(T max.) Maximum Tunnel Wall Thickness 8mm / 0.31in
Stern Measurements Value
(L) Internal Length 364mm / 14.3in
(+L) Tunnel Length 265mm / 10.4in
(WD) Stern Water Depth 185mm / 7.3in
(HT) Maximum Hull Thickness 64mm / 2.5in
