SEP100 TUNNEL THRUSTER (12V, 100KG)

SKU:
SEP100/185T-12V
Price:
$8,412.99 inc. GST

Description

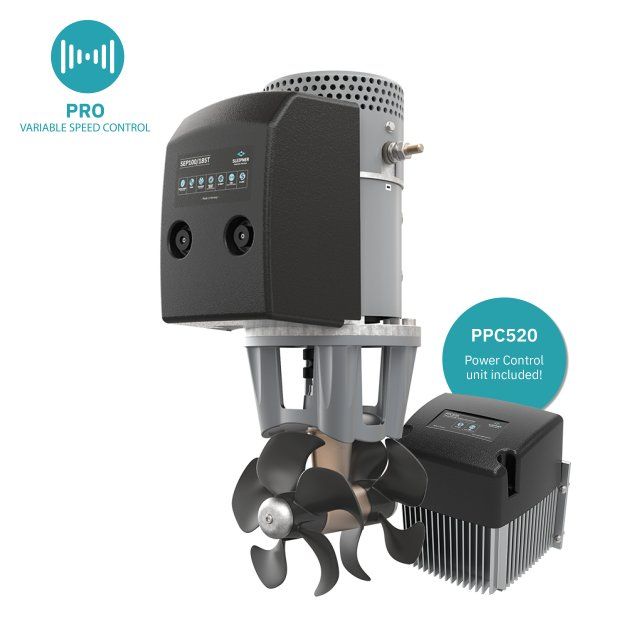

SEP100 Tunnel thruster, 12V 100kg thrust Proportional

The SEP100/185T replaces the SP95Ti as the most powerful thruster available in the popular ΓΈ185mm tunnel diameter and is thereby the optimal thruster for boats where a maximum thrust in a compact tunnel is necessary. The SEP100/185T includes all the important and unique Sleipner features and qualities - why settle for less.

FLEXIBLE INSTALLATION

Sleipner offers installation flexibility to work with the space you have. Our thruster models allow installation at any angle on the tunnel, tailored to fit any space available in your vessel.

DC

Powered by direct current.

FLEXIBLE COUPLING

Flexible coupling protects the product’s driveline by compensating for misalignment between the shafts of the electric motor and gearleg.

OVERHEAT PROTECTION

Automatic detection of overheating of internal components. When an unsafe temperature is detected, the unit is automatically shut off to prevent overheating.

S-LINK™

S-Link™ is a CAN-based control system used for communication between Sleipner products installed on a vessel.

  • Compact and waterproof plugs
  • Keyed and color-coded connectors to ensure correct and easy installation
  • Different cable lengths, extenders and T-connectors makes the system scalable and flexible to install

PRO™

A PRO™ thruster system enables you to apply only the necessary power to complete your maneuver. The variable speed control eliminates the noise associated with standard on/off thrusters.

With a dual setup (bow and stern), you also get a practical hold function enabling you to set and leave the level of thrust.

GALVANIC SEPARATION

Immersed parts exposed to seawater are galvanic isolated from the onboard electrical system, eliminating stray currents.

SEALED DRIVE LUBRICATION

The thruster gearleg is pre-filled for lifetime lubrication and sealed using a long-time mechanical seal with ceramic and carbon surfaces for ultimate security against water intrusion.

TWIN PROPELLERS

Twin propellers can provide more thrust than a single propeller system in the same tunnel diameter. We use this system in our mid-range models, where high thrust is required in small tunnel diameters. Due to the compact design and high performance, the twin models have become the thrusters of choice among boatbuilders worldwide.

Q-PROP™

The Q-PROP™ has measured noise reductions of up to 75% in controlled environments. The five-bladed skew propeller reduces noise levels while maintaining exceptional efficiency. Some thruster models even see an increase in thrust power.

  • The expected noise reduction in average installations: 20-40%
  • Upgrade kits are available for most Sleipner thruster models with special adaptors

INTELLIGENT POWER CONTROL

Sleipner's patented intelligent power control provides a minimal delay between drive directions to reduce wear of the mechanical parts while monitoring solenoid functions. In the case of a solenoid lock-in, the thruster will automatically stop without extra user action or controlling the main switch.

Power Value
Operating Power Electric
Power Requirement 12V DC
Power Output 6.3kW / 8.4hp
Thrust at 12V 116kg / 256lbs
Thrust at 10.5V 100kg / 220lbs
Operational Running Limit (min) 2-3 duty cycle at 20°C
Nominal Current Draw 740A
Min. Battery CCA (DIN) 750
Min. Battery CCA (SAE) 1425
Min. Battery CCA (EN) 1320
Recommended fuse ANL 500



Operational Intention Value
Ideal Vessel Class Motor boat, Sail boat
Ideal Vessel Size 12-17m / 35-55ft
Bow Capability Yes
Stern Capability Yes
Retractable Capability No
External Mounting Capability No
Tunnel Capability Yes



Weight Value
Weight 31kg / 68lbs

Measurements Value
(H) Height 393mm / 15.47in
(L) Length 240mm / 9.45in
(W) Width 292mm / 11.50in
(ID) Internal Diameter 185mm / 7.28in
(WD) Water Depth 185mm / 7.28in
(TL) Recommended Tunnel Length 216mm / 8.5in
(TL min.) Minimum Tunnel Length 179mm / 7.05in
(T min.) Minimum Tunnel Wall Thickness 6mm / 0.24in
(T max.) Maximum Tunnel Wall Thickness 8mm / 0.31in

Stern Measurements Value
(L) Internal Length 351mm / 13.8in
(+L) Tunnel Length 265mm / 10.4in
(WD) Stern Water Depth 185mm / 7.3in
(HT) Maximum Hull Thickness 60mm / 2.4in
