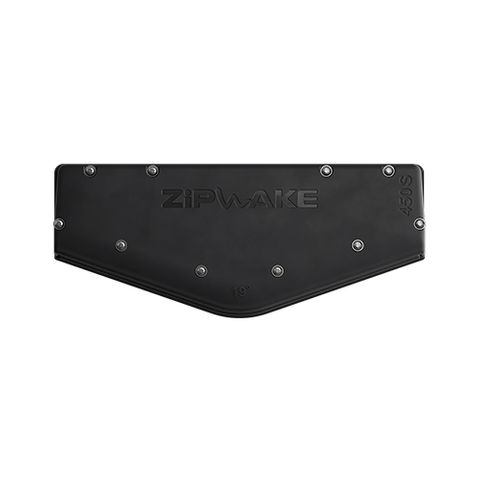

ZIPWAKE 19V INTERCEPTOR
Description
V-shaped interceptor for center mounting, 19 degree angle. Unique design specially developed to fill the gap between two outboards, the gear or double propeller tunnels. Can be installed together with a new system or retrofitted to an existing one.
Comes with integrated mounting plate, cable protection, practical drilling template and three meters of cable.
V-shaped interceptors for centerline mounting
V-shaped interceptors for centerline mounting are perfect for filling the gap between twin outboards or sterndrives, as well as dual propeller tunnels.
FAST, AUTOMATIC AND AFFORDABLE
Zipwake system has a genuine modular and robust design with less moving gears and a totally different and specially sealed submersible servo actuator.
• Zipwake servo motor is universal for 12 – 32 volt.
• Zipwake servo motor do not have components that can cause premature failure due to wear, that is
commutator brushes and potentiometer feedback.
• Zipwake has a reliable electronic design providing sufficient and exact positioning of the blades, in 1/3
mm steps. That means a lot when it comes to exact adjustments of the boat, particularly its roll control.
• Zipwakes system makes a blade stroke in 1.5 seconds.
• Zipwake design provides an efficient protection against marine growth due to a tight design that does
not allow ambient light entering into the system, and importantly it is easy to open the interceptor units and pressure wash their insides after being in water for extended periods of time.
• Zipwake have 1 common power distribution unit for up to 3 pairs of interceptors.
• Zipwake cover a wide range of boats by allowing 3 pairs of interceptors and any combination of the
interceptors in the wider range of interceptor models.
• Zipwake is a fully automatic and active trim control system as standard.
• Zipwake offer 2 alternatives for cable trough transom mount. Either above waterline or concealed
behind the interceptor, simply by routing the servo cable differently.
Model: IT450-S V19
Length: 450 (18) mm (in)
Weight: 3.4 (7.5) (lbs)
Max. boat speed 60 knots
Blade stroke 30 mm (1.2 in)
Blade rate 20 mm/s (0.8 in/s)
Thru-hull cable fitting Concealed or above waterline
Servo actuator SU-S
Cable length 3 m (10 ft), extendable up to 6 m (20 ft)
Cable material PUR
Connector M12 5-pin circular
Connector diameter 14.5 mm (0.57 in)
Supply voltage 12 - 32 V DC
Power consumption 25 W max
Operating temperature 0° to +40°C (+32° to +104°F)
Storage temperature -40° to +90°C (-40° to +194°F)
Waterproof rating IP68 5 m (16 ft)
Compliance CE, FCC
