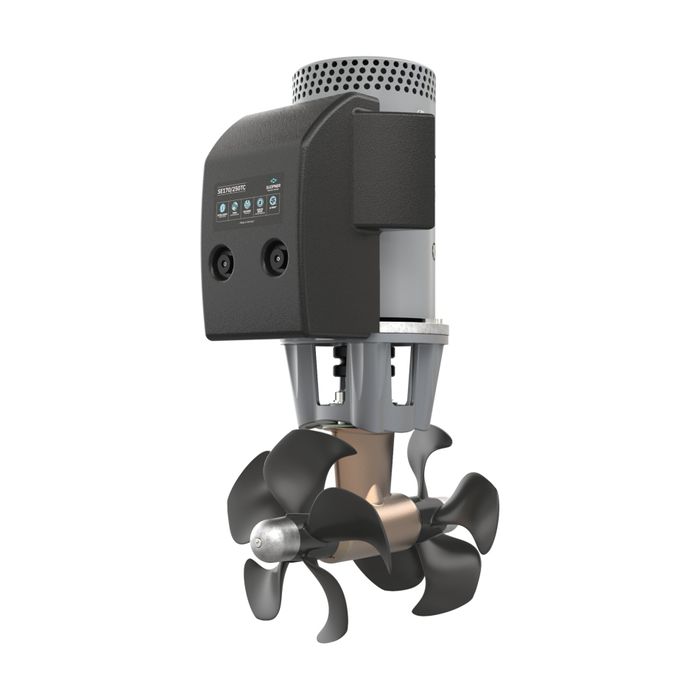

SE170 TUNNEL THRUSTER (24V, 170KG)

SKU:
SE170/250TC
Price:
$7,995.53 inc. GST

Description

SE170 Tunnel thruster, 24V 170kg thrust ON/OFF

With counter rotating five-bladed propellers, mechanically built like its larger brothers, the reliable and powerful SE170/210TC thruster has become the market leader in its size range. The SE170/250TC includes all the important and unique Sleipner features and qualities - why settle for less

Properties



FLEXIBLE INSTALLATION

Sleipner offers installation flexibility to work with the space you have. Our thruster models allow installation at any angle on the tunnel, tailored to fit any space available in your vessel.



WATERPROOF HOUSING

Waterproof housing for use in areas exposed to water.



DC

Powered by direct current.



ANALOG

Sleipner analog signal cables with Plug & Play connectors are color-coded to match the wiring diagrams with high-quality connectors to ensure a correct installation.



OVERHEAT PROTECTION

Automatic detection of overheating of internal components. When an unsafe temperature is detected, the unit is automatically shut off to prevent overheating.





GALVANIC SEPARATION

Immersed parts exposed to seawater are galvanic isolated from the onboard electrical system, eliminating stray currents.



SEALED DRIVE LUBRICATION

The thruster gearleg is pre-filled for lifetime lubrication and sealed using a long-time mechanical seal with ceramic and carbon surfaces for ultimate security against water intrusion.



SINGLE PROPELLER

A properly engineered single propeller system will be the most energy efficient thruster. Its compact design fits easily into narrow bows making it the perfect match for our smaller thruster range. With more than 60.000 single propeller thrusters in use, the single propeller has proven its reliability.



Q-PROP™

The Q-PROP™ has measured noise reductions of up to 75% in controlled environments. The five-bladed skew propeller reduces noise levels while maintaining exceptional efficiency. Some thruster models even see an increase in thrust power.

  • The expected noise reduction in average installations: 20-40%
  • Upgrade kits are available for most Sleipner thruster models with special adaptors



INTELLIGENT POWER CONTROL

Sleipner's patented intelligent power control provides a minimal delay between drive directions to reduce wear of the mechanical parts while monitoring solenoid functions. In the case of a solenoid lock-in, the thruster will automatically stop without extra user action or controlling the main switch.

Power Value
Operating Power Electric
Power Requirement 24V DC
Power Output 8.8kW / 11.8hp
Thrust at 24V 210kg / 462lbs
Thrust at 21V 170kg / 374lbs
Operational Running Limit (min) 2-3 duty cycle at 20°C
Nominal Current Draw 550A
Min. Battery CCA (DIN) 560
Min. Battery CCA (SAE) 1064
Min. Battery CCA (EN) 940
Recommended fuse ANL 400
Operational Intention Value
Ideal Vessel Class Motor boat, Sail boat
Ideal Vessel Size 15-22m / 50-70ft
Bow Capability Yes
Stern Capability Yes
Retractable Capability No
External Mounting Capability No
Tunnel Capability Yes
Weight Value
Weight 44kg / 97lbs

Measurements Value
(H) Height 412mm / 16.22in
(L) Length 247mm / 9.72in
(W) Width 292mm / 11.5in
(ID) Internal Diameter 250mm / 9.84in
(WD) Water Depth 250mm / 9.84in
(TL) Recommended Tunnel Length 322mm / 12.68in
(TL min.) Minimum Tunnel Length 272mm / 10.71in
(T min.) Minimum Tunnel Wall Thickness 7mm / 0.28in
(T max.) Maximum Tunnel Wall Thickness 9mm / 0.35in
Stern Measurements Value
(L) Internal Length 374,6mm / 14.5in
(+L) Tunnel Length 345mm / 13.6in
(WD) Stern Water Depth 250mm / 9.8in
(HT) Maximum Hull Thickness 56mm / 2.2in
