Regular Price:
$989.00 inc. GST
$890.10 inc. GST
$989.00 inc. GST

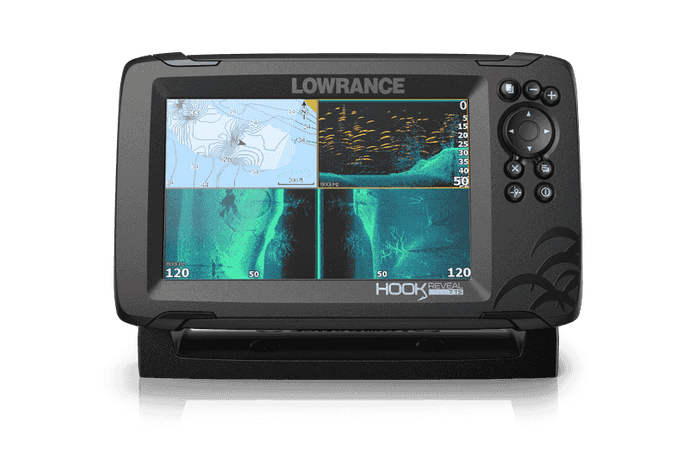

HOOK Reveal 7, seven-inch display with TripleShot transducer, makes fishing easier, delivering powerful performance with proven fish-finding tools including, Autotuning Sonar, SideScan and DownScan Imaging™, improved deep water performance and now FishReveal. C-MAP Coastal chart of Australia and New Zealand.

Key Features:

Genesis Live Real-Time Mapping.
Autotuning sonar.
Double the sonar coverage of other fishfinders.
Included TripleShot transducer.
SolarMAX™ Display.
New fish-finding color palettes.
Optimized keypad with one-touch access to key features.
Mapping options include C-MAP, C-MAP Genesis, Navionics® and more.
MicroSD card slot.
Easy front-dash or gimbal-bracket mount.

Check out more detail here - https://www.lowrance.com/en-nz/lowrance/type/fishfinders-chartplotters/hook-reveal-7-tripleshot-ausnz

The all-new HOOK Reveal makes fishing easier, delivering powerful performance with proven fish-finding tools including, Autotuning Sonar, SideScan and DownScan Imaging™ and now FishReveal™, which makes fish easier to see by combining the benefits of Lowrance CHIRP sonar and DownScan Imaging™ on one screen. Whether you’re fishing a local spot or unfamiliar water, find the best fishing areas or map uncharted water – in real time – with Genesis Live

Key Features

  • FishReveal™
  • Genesis Live Real-Time Mapping
  • Autotuning sonar
  • Double the sonar coverage of other fishfinders
  • Included TripleShot transducer
  • SolarMAX™ Display
  • New fish-finding color palettes
  • Optimized keypad with one-touch access to key features
  • Mapping options include C-MAP, C-MAP Genesis, Navionics® and more*
  • microSD card slot
  • Easy front-dash or gimbal-bracket mount

SolarMAX™ Display Enjoy crisp and clear views of your display no matter the conditions – even in direct sunlight – with excellent clarity and daylight visibility of HOOK Reveal’s SolarMAX™ display.

FishReveal Fish are easier to find and easier to identify with FishReveal™, which combines on one screen the proven target separation of Lowrance CHIRP sonar and the high-resolution images of structure from DownScan Imaging™.

Genesis Live Real-Time Mapping Create custom ½-foot contour maps of your local lake or uncharted water – in real time – on the display of your HOOK Reveal with Genesis Live. Genesis Live maps can be created and saved by placing a blank microSD card into the card slot.

Autotuning Sonar Spend more time fishing and less time reworking your sonar settings with HOOK Reveal Autotuning sonar, which ensures you get the best sonar image every time by automatically adjusting settings as fishing conditions change.

Easy-to-use Menu Operation and Dedicated Keypad Easily navigate through menus, select options and access key functions with HOOK Reveal’s simple menu layout and dedicated keypad.

Included TripleShot transducer

Mapping options Optional chart upgrades include C-MAP, C-MAP Genesis, Navionics® and more.

Easy front-dash or gimbal-bracket mounting installation

Physical (with bracket)

Height 164.2 mm (6.46")
Width 236.4 mm (9.31")
Depth 112.3 mm (4.42")
Weight 0.7 Kg (1.54 lbs)


Type Wide Angle 200 kHz / High CHIRP 455/800 DownScan / SideScan Imaging
Max sonar depth 200kHz 152 m+ (500 ft+) DownScan: 91 m (300 ft)
Max Sonar Range 183m (600ft) side-to-side Max 300ft to each side


Size 7 Inch
Resoloution 800x480
Brightness 1200 nits
Technology Sunlight readable SolarMAX™ display
Viewing angles 70°/50°, top/bottom, 70°/70°, left/right


Waypoints 3000
Routes 100
Tracks 100


Memory card 1 x Micro SD Card


Bracket Supplied
Panel mount Optional panel mount kit required (000-14188-001)


Supply voltage 12 V DC (10.4 - 17.0 V DC)
Current draw 16.3 W
Fuse 3 A


Operating Temperature -15° C to +55° C (+5° F to +131° F)
Water proof rating IPX6 / IPX7
